AEI Used KRL/DD 1300 x 4m Double Deck Screener

BIVITEC KRL/DD 1300 × 4M OX Flip-Flow Screen

Double Deck patented double-oscillation inclined flip-flow screen
Model: KRL/DD 1300 × 4M OX

. Top Deck
(12) 5 mm thick polyurethane screen panels
15 mm round openings
Patented wedge fastening system
. Bottom Deck
(12) 3 mm thick polyurethane screen panels
3 mm × 10 mm slotted openings
Patented wedge fastening system
. Drive System
Two-bearing vibrating mechanism located between the decks
Heavy-duty screen roller bearings
Complete drive assembly including:
Cardan line shaft drive
V-belt drive and sheaves
Drive guard
25 HP, 1,800 RPM, TEFC electric motor
575 Volt, 3 Phase
Fixed motor mount on right side
. Screen Construction
Heavy-duty screen basket with patented Ox-Horn sealing system
Floating frame mounted on rubber isolation blocks
Precision-fabricated steel Ox-Horn panel supports
Base mounted on rubber springs for smoother operation
Canvas screen cover for quick installation and removal
Heavy-duty under-screen support frame
Prime and finish painted

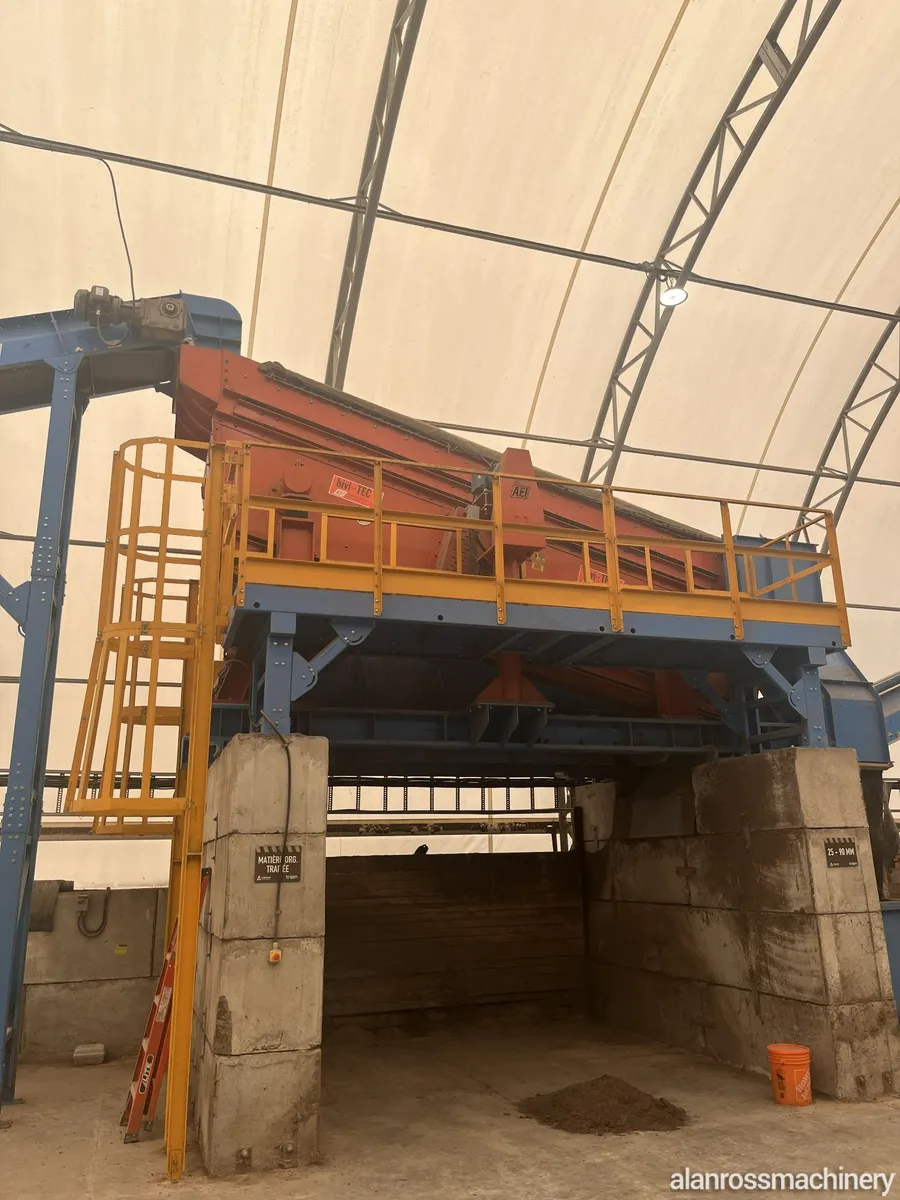

Heavy-Duty Support Stand

. Heavy-duty structural steel skid-mounted support stand with integral screen support and motor mount assembly.

Features:
Feed box elevation: Approximately 16 ft to top of feed box
Access walkway with handrails on three sides
(1) Access ladder to ground
Under-screen discharge chute
24" wide
Designed to discharge material onto an under-screen conveyor (supplied by others)

Note: Under-screen conveyor is not included.
