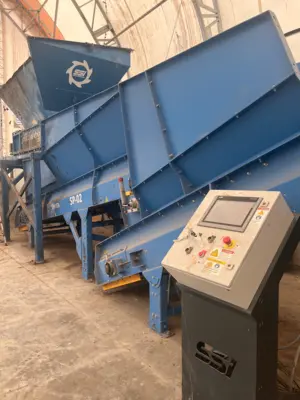

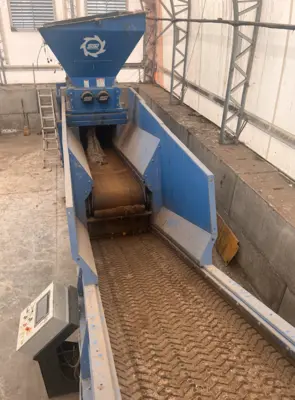

M85 SSI Dual-Shear Shredder (Electric)

PRICING
Electric, 600V
Includes: Shredder & Control Panel
Does Not Include: Conveyor(s) (Extra cost)

SHREDDER DIMENSIONS
Cutting Chamber Width: 35 in (892 mm)
Cutting Chamber Length: 63 in (1,608 mm)
Stand Height: 78.00 in (1,981 mm)

DRIVE
Drive Motor: 100 HP (75 kW), TEFC
Voltage / Phase / Frequency: 575 / 3 / 60
Control Voltage: 24 VDC

PLANETARY GEAR REDUCER
Manufacturer: Brevini
Model: SL4003
Ratio: 82.6:1

SSP COUPLING
Part Name: Shredder Head
Manufacturer: Falk
Model: 1080T41
Spring Setting Dim 'X': 1.71 in (43.4 mm)
New Pad Break-In Dim 'X': 1.92 in (48.8 mm)

CUTTER STACK
Cutter Diameter: 18.1 in (460 mm)
Cutter Thickness (nominal): 2.00 in (51 mm)
Start Clearance: 0.13 in (3.2 mm)
Shaft Diameter: 6 in (152 mm) hexagonal

SHAFT SPEEDS (synchronous / maximum)
Right Hand Shaft: 22 rpm / 27 rpm
Left Hand Shaft: 17 rpm / 22 rpm

SHAFT TORQUE (peak)
Right Hand Shaft: 43,400 ft-lb (58,800 Nm)
Left Hand Shaft: 54,800 ft-lb (74,300 Nm)

CUTTER FORCE AT TIP (peak)
Right Hand Shaft: 57,400 lb (255,500 N)
Left Hand Shaft: 72,500 lb (323,000 N)

CUTTER TIP SPEED (maximum)
Right Hand Shaft: 129 ft/min (0.66 m/s)
Left Hand Shaft: 102 ft/min (0.52 m/s)

WEIGHTS
Shredder Assembly: 18,500 lb (8,330 kg)
Heaviest Piece (installation): 12,500 lb (5,630 kg)
Planetary Reducer: 670 lb (300 kg)
Drive Shaft: 860 lb (385 kg)
Cutter: 120 lb (55 kg)
Endplate: 650 lb (295 kg)

TORQUE SPECIFICATIONS
Endplate Hub Jacking Bolt: 35 ft-lb (47 Nm)
Gearbox Bearing Lock Bolt: 8 ft-lb (11 Nm)

OIL CAPACITIES
Shredder Gear Box: 20 gal (76 L)
Planetary Gear Reducer: 2.5 gal (10 L)
