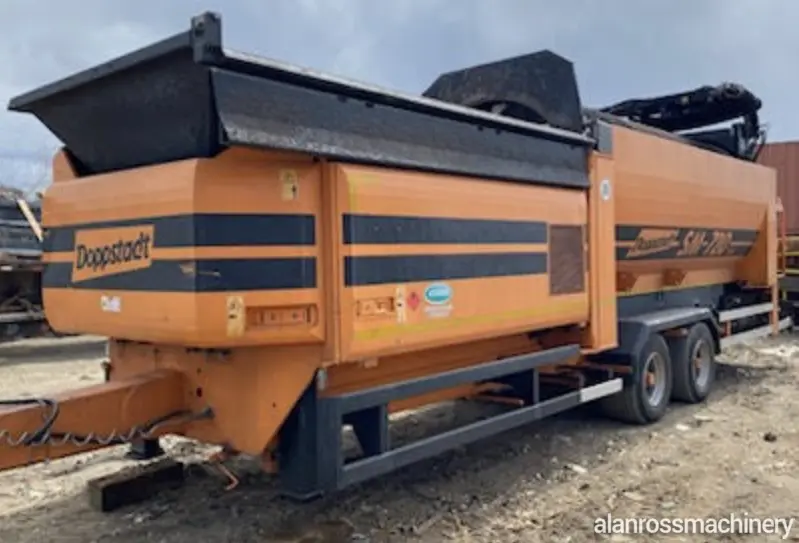

DOPPSTADT SM 720 PLUS

1” Screening Drum

Screening
 Screening area equivalent to 7’ diameter x 20’ length
 Complete with punch plate drum, replaceable in 15 minutes
 Continuous load-sensing material feeding from the hopper belt to the
screening drum
 Hopper approximately 6.5 cubic yards
 Hydraulically tensioned cleaning brushes

Engine / Mechanical / Hydraulics
 Deutz Diesel engine TCD 3.6 L4, 114 hp
 Certified EPA Tier 4 Final
 Fuel Capacity: 80 Gallons
 2-stage fuel filter system
 Engine swings out at 90 degrees for ease of access
 Central lubrication banks
 Hydraulically reversible fan wheel at water and oil cooler

Electrical / Control Panel
 Doppstadt Telematic Monitoring System for remote panel access and
diagnostic by factory-trained technician
 24V Control Panel system with the following:
 Emergency stop
 Fold/unfold rear conveyor
 Fold/unfold/buckle side conveyor
 Continuously adjustable speeds: Drum from 0-20 rpm, hopper belt from 0-.18y/s
 Emergency stop switches at the side and rear conveyors

Conveyors
 Rear Conveyor: Length: 18’, Width 40” - Hydraulically foldable
 Side Conveyor: Length: 18’, Width: 40”- Hydraulically foldable

Chassis / Transportation
 Central axle trailer chassis
 ABS braking system and road-legal light system
 Tires 435/50R 19.5 (low profile)
 2-inch EC trailer coupling ring including slip on coupling
 Hydraulically adjustable jack-legs
