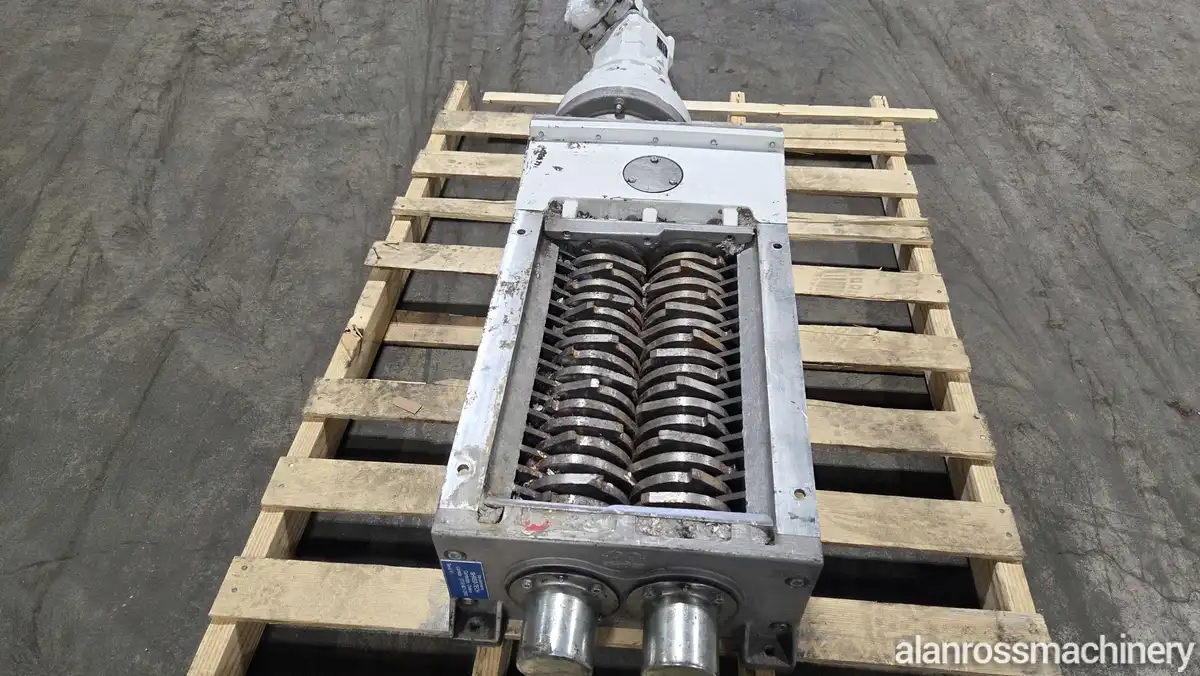

ST15 Shred-Tech Used Dual Shaft Shredder

Source: manufacturer datasheet attached to this listing. Metric values are conversions.

Cutting chamber
- Chamber opening: 13 in x 21 in (330 mm x 533 mm)
- Knife diameter: 6-3/4 in (171 mm)
- Hex shaft size: 2-11/16 in (68 mm)
- Distance between shafts: 5-7/8 in (149 mm)

Drive and power
- Drive: electric motor, gear-reduced drive ratios
- Number of motors: 1
- Motor ratings offered: 10, 20, 25 or 30 HP (approx. 7.5, 15, 18.5 or 22 kW)
- Voltage: 208 to 600 V
- Frequency: 50 / 60 Hz

Knives (factory ranges, not paired)
- Standard knife thicknesses: 1/4 in (6.4 mm), 3/8 in (9.5 mm), 1/2 in (12.7 mm), 5/8 in (15.9 mm), 1-1/4 in (31.8 mm)
- Knife counts offered: 73, 50, 36, 46, 14

Stand and hopper
- Hopper height: 38 in (965 mm)
- Discharge height: 40 in (1,016 mm)
- Stand opening width: 30 in (762 mm)
- Stand opening length: 38 in (965 mm)

Footprint
- Floor space: 16 sq ft (1.49 sq m)

Controls
- HMI touch screen
- Keyed power switch
- Fused lockable disconnect
- Hour meter
- PLC for shredder functions, including knife reversal on overload

Factory options (not confirmed present on this unit)
- Pneumatic or hydraulic ram
- Custom stands and hoppers
- Feed and discharge conveyors
- PLC interfacing for peripheral equipment
- Explosion-proof motors
- Modem capability
- Hydraulic drive options
- Magnetic or eddy current separators

Configuration note
- Horsepower, knife thickness and knife count vary by build; the figures above are the factory ranges for this model. Confirm the as-built configuration.
