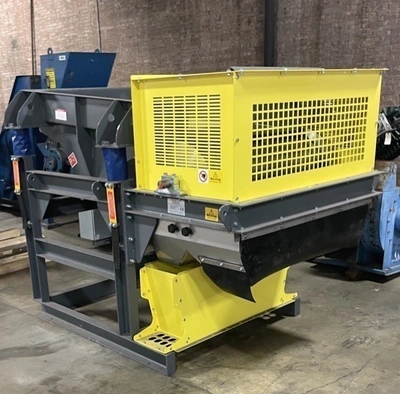

48" New Magnapower Rare Earth Drum & 48" New Vibr. Feeder

• Manufacturer: Magnapower Equipment Ltd.
• Model: PMDS32/120RE
• Equipment Type: Rare Earth Permanent Magnetic Drum Separator with Vibratory Feeder
• Effective Working Width: 48" (1,200 mm)
• Nominal Drum Diameter: 320 mm (12.6")
• Primary Function: Recovery and removal of ferrous and weakly magnetic metals from bulk material streams
• Typical Applications: Shredded scrap, ASR, glass cullet, C&D material and recycling systems
• System Application: Commonly installed upstream of an Eddy Current Separator to remove magnetic material before non-ferrous separation

• VIBRATORY FEEDER
• Effective Tray Width: 48" (1,200 mm)
• Drive System: Twin out-of-balance electric vibratory motors
• Feeder Type: Heavy-duty vibratory material-spreading feeder
• Tray Construction: Heavy-duty stiffened steel construction
• Impact Section Liner: 6 mm ABRO 400 abrasion-resistant wear plate
• Tray Body Liner: 6 mm stainless steel
• Discharge Section: Approx. 390 mm non-magnetic stainless steel section
• Isolation System: Heavy-duty steel coil springs
• Primary Function: Provides an even, controlled material layer across the full width of the magnetic drum

• RARE EARTH DRUM MAGNET
• Drum Width: 1,200 mm (48")
• Drum Diameter: 320 mm (12.6")
• Magnet Type: High-intensity Rare Earth permanent magnetic circuit
• Magnetic Material: Neodymium Rare Earth (NdFeB)
• Magnetic Circuit: High-gradient permanent magnetic configuration
• Drum Shell: Non-magnetic stainless steel
• Operation: Rotating outer drum shell around a stationary permanent magnetic field

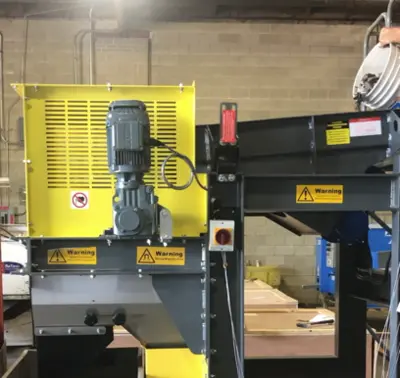

• Drive System: Electric motor and gearbox
• Separation Capability: Ferrous and weakly magnetic material recovery
• Fine Material Recovery: Designed for recovery of smaller and more difficult magnetic contaminants

• FRAME & SYSTEM CONSTRUCTION

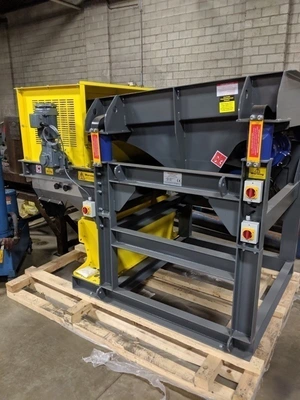

• Base Frame: Heavy-duty structural steel common mounting stand
• Feeder and Drum: Integrated into a common material-processing arrangement
• Material Presentation: Feeder distributes material evenly across the magnetic separation zone
• Construction: Heavy-duty industrial design for continuous recycling and material-recovery applications

• SEPARATION FEATURES
• Continuous automatic magnetic separation
• Permanent magnet design requires no electrical power to generate the magnetic field
• Drum rotation continuously carries captured magnetic material away from the product stream
• Suitable for installation ahead of Eddy Current Separators
• Designed to improve downstream non-ferrous separation efficiency
• Suitable for fine ferrous and weakly magnetic fractions
