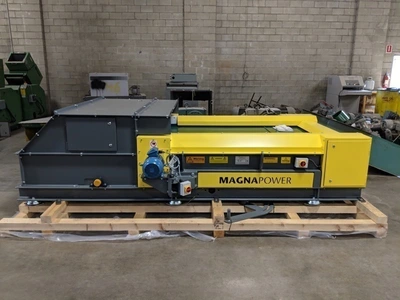

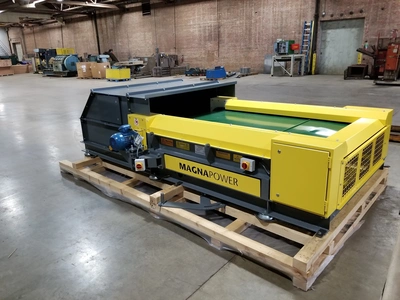

48" New Magnapower Eddy Current Separator with Control Panel

• Manufacturer: Magnapower Equipment Ltd.
• Model: ECS1200
• Equipment Type: Eddy Current Separator
• Effective Belt Width: 48" (1,200 mm)
• Primary Function: Recovery of non-ferrous metals from mixed material streams
• Typical Recoverable Metals: Aluminum, copper, brass and other electrically conductive non-ferrous metals
• Typical Applications: E-waste, shredded scrap, ASR, C&D, glass cullet and municipal recycling streams

• POWER & DRIVE SYSTEM
• Rotor Drive: Electric motor
• Rotor Drive Power: Configuration dependent; verify installed motor nameplate
• Conveyor Belt Drive: Electric gearmotor
• Belt Drive Power: Configuration dependent; verify installed motor nameplate
• Speed Control: Variable-frequency / inverter control
• Rotor Speed: Independently adjustable
• Conveyor Speed: Independently adjustable

• ROTOR & MAGNETIC SYSTEM
• Rotor Configuration: High-frequency eccentric rotor
• Magnet Type: High-intensity Rare Earth permanent magnet
• Magnet Material: Neodymium (NdFeB)
• Rotor Position: Eccentric magnetic rotor positioned near the material discharge point
• Separation Principle: Rapidly changing magnetic field induces eddy currents in conductive non-ferrous metals
• Separation Action: Induced repulsive force projects non-ferrous material away from the normal discharge trajectory
• Eccentric Design Advantage: Concentrates the separation field at the discharge zone while reducing prolonged magnetic interaction beneath the belt

• CONTROL SYSTEM
• Rotor Control: Variable-frequency / inverter speed control
• Conveyor Control: Variable-frequency / inverter speed control
• Emergency Stop: Integrated into control system
• Motor Protection: Electrical overload protection
• Safety Interlocks: Application and control-package dependent
• Electrical Supply: Machine-specific; verify control-panel and motor nameplates
• North American Configurations: Commonly supplied for industrial 3-phase power

• FRAME & BELT SYSTEM
• Frame Construction: Heavy-duty cantilever design
• Cantilever Feature: Allows conveyor belt replacement without major machine disassembly
• Conveyor Belt: Thin, low-stretch separator belt designed for efficient magnetic-field penetration
• Belt System: Sealed / protected conveyor arrangement
• Belt Tensioning: Accessible adjustment system
• Bearing Protection: Labyrinth sealing arrangement for dust and fines protection

• DISCHARGE & SEPARATION SYSTEM
• Splitter: Adjustable knife-edge splitter
• Splitter Function: Separates projected non-ferrous fraction from non-metallic material
• Separation Point: Adjustable to suit material size, density and conductivity
• Feed Requirement: Best performance achieved with a controlled, evenly distributed material layer
• Upstream Ferrous Removal: Magnetic separation recommended ahead of the Eddy Current Separator
• Typical Upstream Equipment: Vibratory feeder and Rare Earth magnetic drum separator

• DESIGN FEATURES
• High-intensity eccentric Rare Earth rotor
• Independently adjustable rotor and belt speeds
• Continuous automatic non-ferrous separation
• Cantilever construction simplifies belt maintenance
• Adjustable splitter permits separation tuning
• Labyrinth bearing protection for dusty recycling environments
• Designed for continuous-duty material-recovery applications
