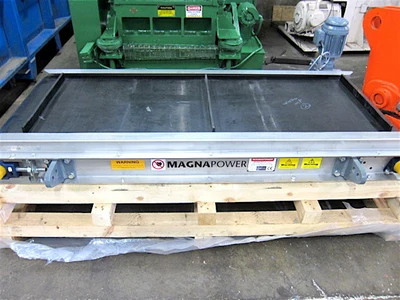

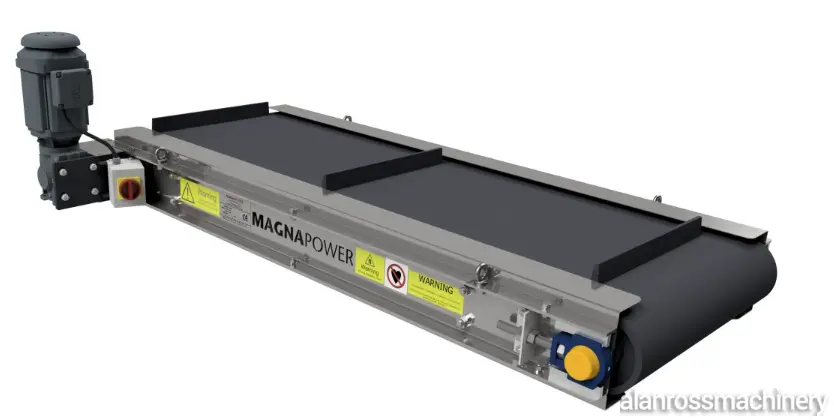

OCP3415E New Magnapower Crossbelt Magnetic Separator

GENERAL DESCRIPTION:
High: powered, non-deteriorating compact permanent magnet system designed for deep-field extraction. Features an alternating pole configuration to concentrate the magnetic field within the working zone while minimizing stray magnetic flux. Performance is engineered to be comparable to rare earth systems at designated working gaps.

MAGNETIC PERFORMANCE:
* magnetic flux density (primary): 13,000 gauss per 2/cm at 250mm (approx. 5/8 inch)
* magnetic flux density (secondary): 7,000 gauss per 2/cm at 350mm (approx. 8 inches)
* magnet type: Permanent deep-field high-intensity system
* configuration: Alternating poles for field containment

DRIVE & ELECTRICAL:
* motor power: 1.5 kW (Approximately 2 HP)
* frequency: 60 Hz
* voltage: 440-460 V
* approximate belt speed: 1.3 meters per second

CONSTRUCTION & PHYSICAL SPECS:
* frame material: Welded Stainless Steel
* working gap: 12 inches
* handling: 4 integrated lifting eyes for overhead installation
* housing: Compact enclosed design to protect internal magnetic circuit

FEATURES:
* deep: field penetration for high-volume material flow
* Passive magnetic system requires no power for the magnetic field itself
* low: maintenance belt drive for continuous ferrous discharge
* Industrial grade framework suitable for corrosive or heavy-duty environments

NOTES:
* All performance ratings based on factory testing at specified working distances.
* System is designed for suspended mounting over conveyors or vibratory feeders.

Manufacturer: Magnapower
Model: OCP 3415E
Type: Permanent magnet overband crossbelt separator
Maximum field width: 60 in
Max belt lift and discharge distance: 73 in (material dependent)
Working gap: 12 in (300mm)
Magnetic flux density primary: 13,000 gauss per 2 cm at 250mm (5/8 in)
Magnetic flux density secondary: 7,000 gauss per 2 cm at 350mm (8 in)
Motor: 1.5 kW, 3-phase, 60/230/460 Volt electric motor
Belt speed: Approximately 1.3 m/s
Framework: Stainless steel
Lifting points: 4 lifting eyes
Application: Ferrous metal extraction from conveyor belt systems
