Used LMG 500HD3724841 500-Ton Hydraulic Compression Press

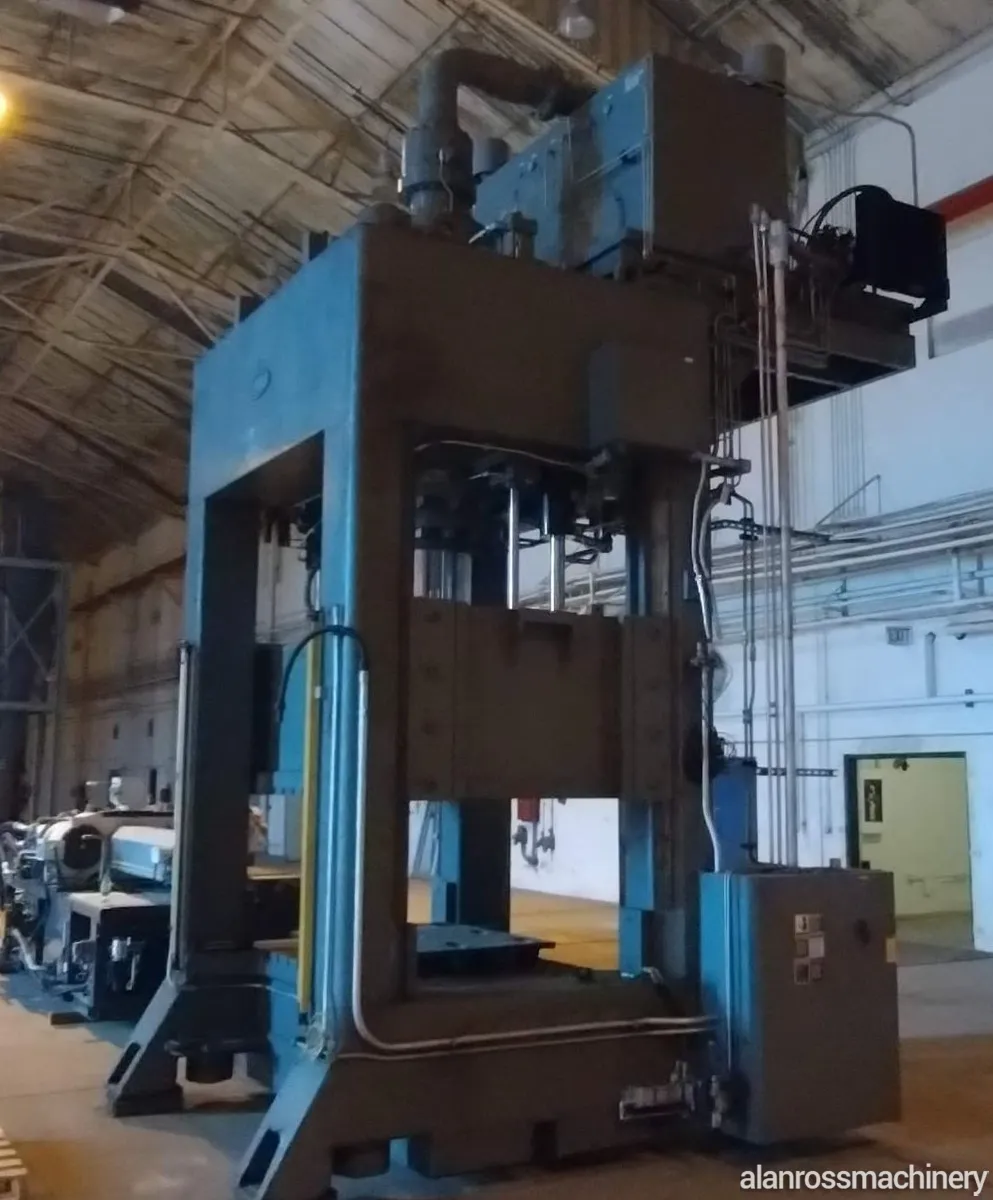

Used LMG 500-Ton Hydraulic Compression Press

Heavy-duty LMG (Lawton/Trinks lineage) hydraulic compression press designed for high-force industrial molding applications. Previously utilized in recycled plastic pallet manufacturing - rated for 1 million pallets/year at peak performance. Built for continuous-duty operation with large-format molds.

Key Specifications:
- Capacity: 500 Tons (manufacturer rated)
- Platen Size: 48" x 60"
- Stroke Length: 28"

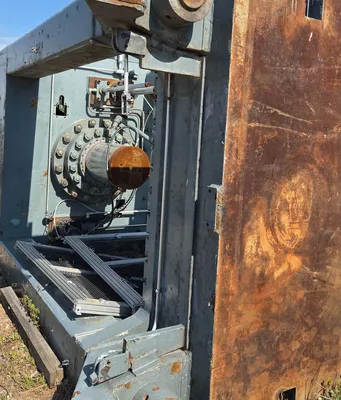

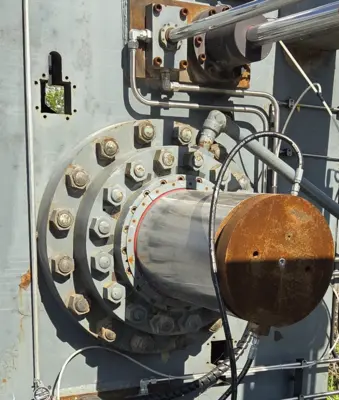

- Cylinder Bore: 18"

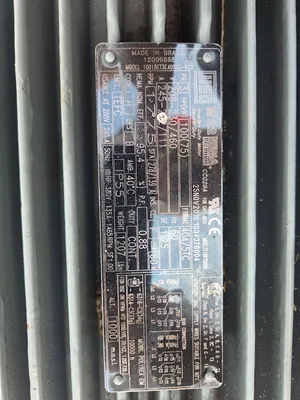

- Main Motor: 100 HP WEG, 460V, 3-Phase
- Hydraulic Pump: Parker Denison P0100XS vane pump, 45-50 GPM
- Operating Pressure: 2,000-3,000 PSI
- Controls: PLC-controlled system
- Ram Speed: 0.7 in/sec under load
- Cycle Time: 60-120 seconds

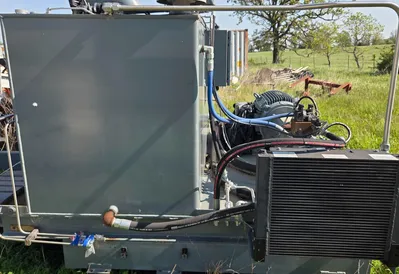

Hydraulic System:

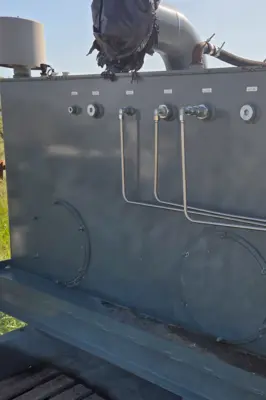

- Kundinger reservoir

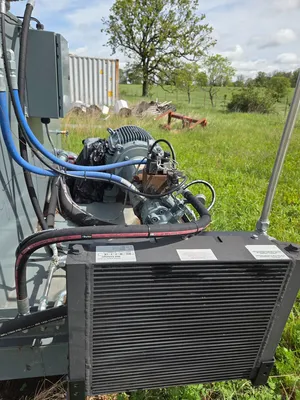

- Oil cooling system (radiator/heat exchanger)
- Filtration and manifold system

Dimensions (3 pieces):

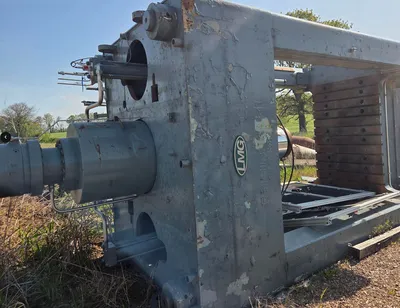

- Main Press: 20.5 x 11.5 x 8.5 ft

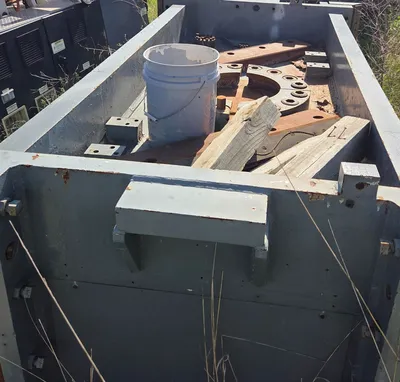

- Platen: 4.5 x 3 x 8.5 ft

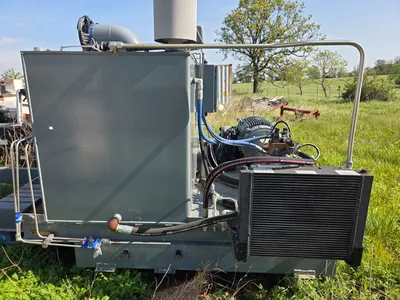

- Pump/Reservoir: 12.5 x 8.5 x 7 ft

Weight: 58,000 lbs total (ships in 3 pieces)
Transport: Requires low-boy 48 ft semi trailer, 110-ton crane for unloading, oversize/overweight permits

Applications:
- Plastic and composite compression molding
- Large-format part production
- Industrial forming requiring high tonnage
