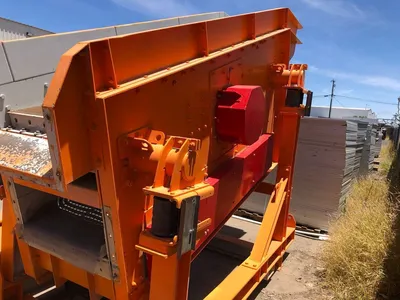

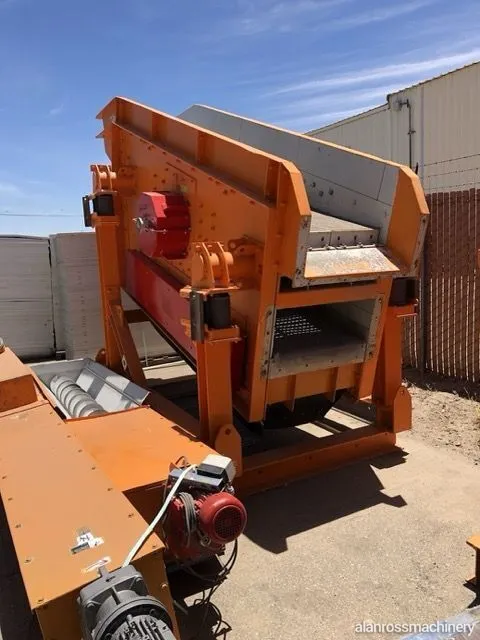

Used Spaleck SZWS 800x3000 3D Combi Flip Flow Double-Deck Screen

Used Spaleck SZWS 800x3000 3D Combi Flip Flow Double-Deck Screen

Key Specifications:
• Width: 800mm (31.5")
• Length: 3000mm (9'10")
• Weight: 3,500 kg (7,716 lbs)
• Incline: 15°
• Motor: 11 kW (14.7 HP), 400V, 3-Phase, 1,470 RPM, IP55
• Drive: Shaft Drive SW 8-3600, Air Spring Isolation
• Serial No: 216673.1/1

Screen Decks:

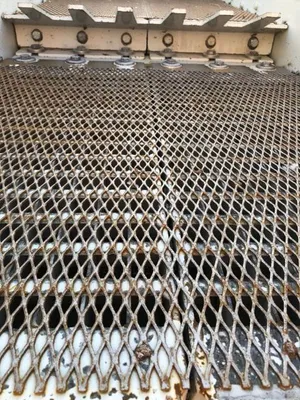

• Upper Deck: 3D-Special Screen, 30x30mm openings, screwed panels

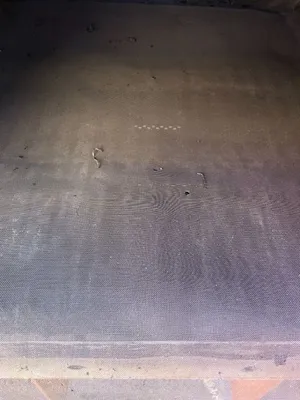

• Under Deck: Flip-Flow Deck, 5x5mm openings, rubber wedge fixing

Material Outlets:
• Fine material: below the machine
• Medium material I: below the machine
• Medium material II: over the head of the machine
• Coarse material: over the head of the machine

Design:
• Welded, vibration-proof steel structure in open design
• Air spring isolation/displacement system
• Shaft drive system with tension bar position
