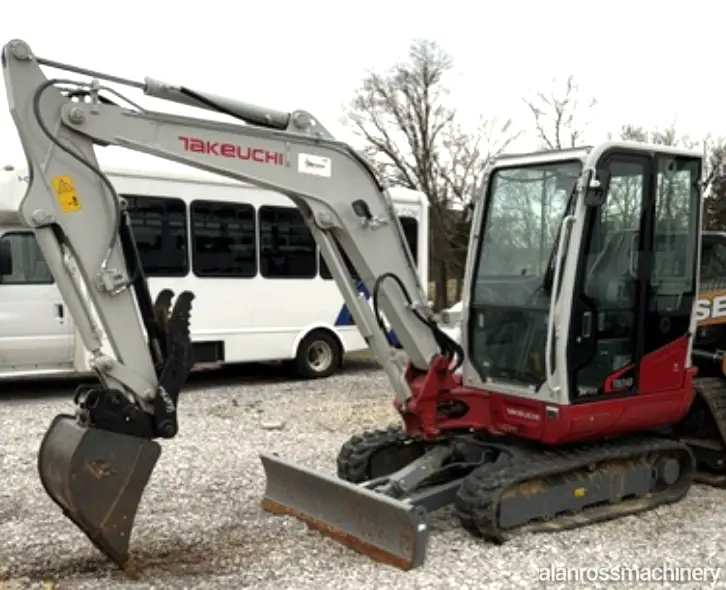

TAKEUCHI B240 Used Excavator

Operating Performance

Operating Weight (Canopy): 8,570 lb (3,890 kg)
Operating Weight (Cab): 8,990 lb (4,080 kg)
Maximum Bucket Breakout Force: 9,959 lb (4,517 kg)
Maximum Arm Digging Force: 4,110 lb (1,864 kg)
Arm Length: 5 ft 3 in (1,600 mm)
Slew Speed: 9.6 rpm
Traction Force: 9,533 lb (4,324 kg)
Ground Pressure (Canopy): 4.4 psi (30.2 kPa)
Ground Pressure (Cab): 4.6 psi (31.6 kPa)
Travel Speed (Low): 1.8 mph (2.9 km/h)
Travel Speed (High): 3.3 mph (5.3 km/h)

Hydraulic System

Total Hydraulic Flow: 30.6 gpm (115.8 L/min)
Auxiliary Hydraulic Flow: 17.1 gpm (64.9 L/min)
Hydraulic System Pressure: 3,481 psi (24.0 MPa)

Engine

Make / Model: Yanmar 4TNV88C
Displacement: 133.6 cu in (2.2 L)
Horsepower: 35.8 hp (26.7 kW) @ 2,200 rpm
Maximum Torque: 102.6 ft-lb (139.1 Nm) @ 1,430 rpm

Fluid Capacities

Engine Oil: 7.8 qt (7.4 L)
Cooling System: 9.5 qt (9.0 L)
Fuel Tank: 18.5 gal (70.0 L)
Fuel Consumption (65% Load): 1.2 gal/hr (4.8 L/hr)
Hydraulic Reservoir: 10.8 gal (41.0 L)
Total Hydraulic System: 19.5 gal (74.0 L)

Machine Dimensions

Maximum Reach: 18 ft 2 in (5,545 mm)
Maximum Reach at Ground: 17 ft 9 in (5,425 mm)
Maximum Digging Depth: 11 ft 4 in (3,465 mm)
Maximum Vertical Digging Depth: 8 ft 8 in (2,665 mm)
Maximum Dig Height: 17 ft 2 in (5,244 mm)
Maximum Dump Height: 12 ft 6 in (3,828 mm)
Front Swing Radius: 6 ft 8 in (2,037 mm)
Front Swing Radius (Offset): 5 ft 4 in (1,626 mm)
Tail Swing Radius: 4 ft 5 in (1,365 mm)
Transport Length: 16 ft 8 in (5,020 mm)
Transport Height: 8 ft 2 in (2,505 mm)
Ground Clearance: 11.6 in (295 mm)
Undercarriage Length: 6 ft 11 in (2,110 mm)
Track Width: 13.8 in (350 mm)
Overall Width: 5 ft 8 in (1,740 mm)
