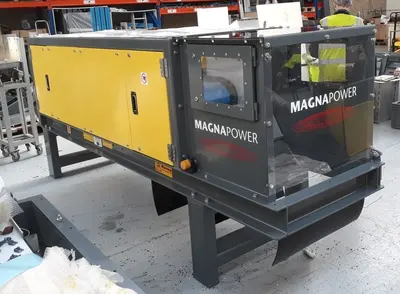

24" New Magnapower "Super-Fines" Eddy Current (Right Mount Motor)

Sorts 5mm minus fractions on many materials (ask about our testing capability).
3kW Rotor Motor (3 Phase / 60 Cycle / 460 Volts).
1.5kW Belt Motor (3 Phase / 60 Cycle / 460 Volts).
VFD controls / feeder controls.
Eccentric, high inductive force rotor.
Magnetic anti-leakage design increases performance up to 50%.
Optimal pole to diameter ratio.
Adjustable two-stage splitter box.
Cantilever Belt Change (~10 minutes)
Brute force pan feeder (optional).
600mm PMDS rare earth drum (optional).
Preassembled on common bolt-together frame.
Easy belt and rotor access for maintenance.
Dual VFD control panel.
ECS belt cleaning brush (optional).
Fast and precise splitter positioning lever with indicators.
Parts in stock at our Chicago-area facility.
ECS manufactured by Magnapower in Birmingham, England, UK.
Magnapower's proprietary rotor design combines high inductive force with higher frequency operation for outstanding performance at the widest range of particle sizes. In use throughout North America on large and small fractions, sorting even aluminum flake and dross. Please reach out to schedule a test on your material to validate and/or compare performance.
In-use throughout North American & Europe by many of the largest (and smallest) processors in the recycling industry.
