JWC Monster 3-SHRED-2-H-1800 Twin-Shaft Shredder
Have one to sell?
1 available

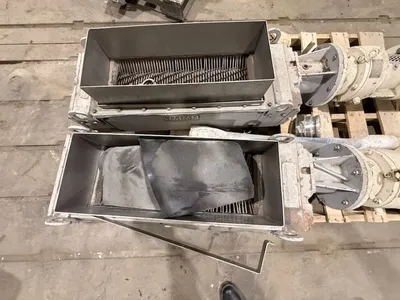

JWC Environmental Monster Industrial 3-SHRED-2-H-1800 dual-shafted, low-speed, high-torque industrial shredder. Designed for difficult grinding applications including food waste, organics, plastics, and industrial solids reduction. Features stainless steel feed hopper, inline planetary gearbox (29:1 ratio), and Baldor Super-E Washdown Duty 10HP motor (Cat. No. CEWDM3714T) — white epoxy-coated, suitable for high-moisture and washdown environments. Ideal for food processing, pharmaceutical waste, recycling, waste-to-energy pre-conditioning, and material destruction applications.
MANUFACTURER: JWC Environmental (Monster Industrial)
MODEL: 3-SHRED-2-H-1800
TYPE: Dual-Shaft Low-Speed High-Torque Shredder

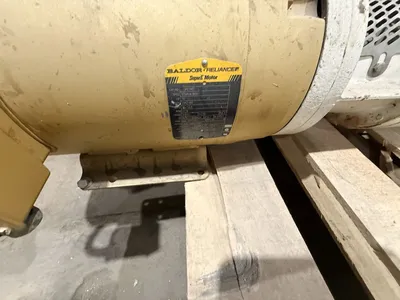

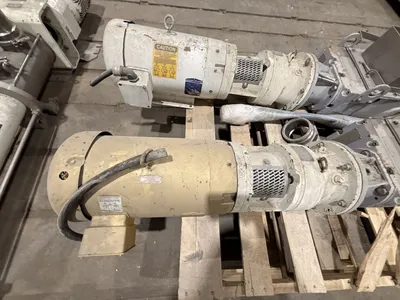

MOTOR: Baldor 10 HP (7.5 kW), TEFC
VOLTAGE: 230/460V, 3-Phase, 60Hz
GEARBOX: Inline Planetary, 29:1 Ratio
THROUGHPUT: 108 ft³/hr (3.1 m³/hr) theoretical
FULL LOAD TORQUE: 846 lb-ft (1,147 N-m)
CUTTER DIAMETER: 4-3/4" (120 mm)
SHAFT HEX SIZE: 2" (50 mm)
CUTTING CHAMBER: 18" (457 mm) length
SEAL TYPE: Severe-duty mechanical seal cartridge
DIMENSIONS (OAL): 65-15/16" L x 8-11/16" W x 12" H
(1674 x 221 x 305 mm)
WEIGHT: ~668 lbs (303 kg)
MATERIALS: Cast ductile iron body, hardened alloy steel
cutters/shafts, stainless steel hopper
CONTROLS: NEMA-4X SS control box with PLC,
load-sensing, auto-reverse, E-stop
TORQUE PROTECTION: Detent coupling (optional)

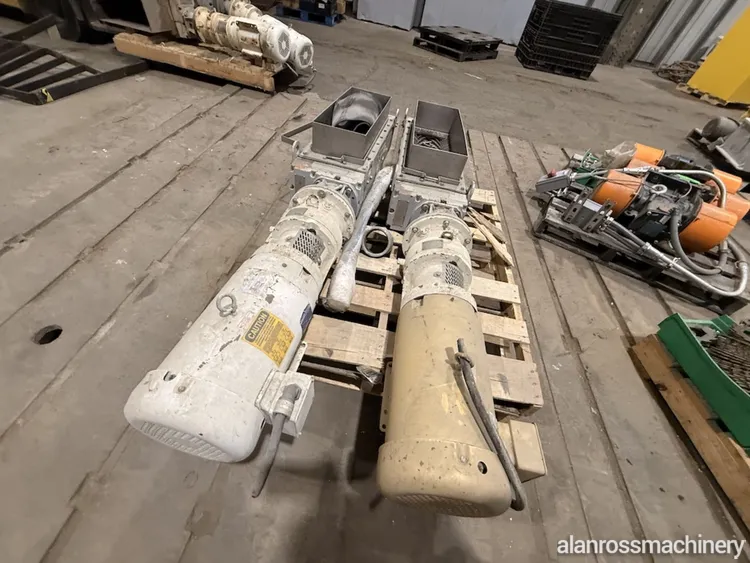

* Photos may show 2 units. Only one available.
