JWC Monster 4-SHRED-1-H-3200 Twin-Shaft Shredder
Have one to sell?
1 available
JWC Environmental Monster 4-SHRED-1-H-3200 heavy-duty dual-shaft industrial shredder designed for reliable size reduction of tough solids and bulk waste materials. This low-speed, high-torque grinder utilizes hardened alloy steel cutters and integrated steel scrapers to efficiently process debris while minimizing wear and maintenance. Built with a rugged ductile iron body and severe-duty drive system, the Monster 4-SHRED-1 series is well suited for demanding applications including food waste processing, industrial waste reduction, product destruction, and solids handling in wastewater or recycling facilities.
Ideal for food processing, pharmaceutical waste, recycling, waste-to-energy pre-conditioning, and material destruction applications.

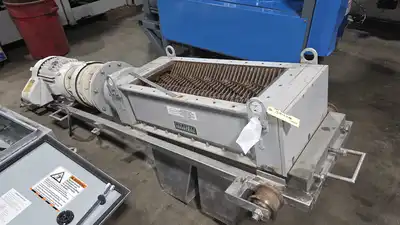

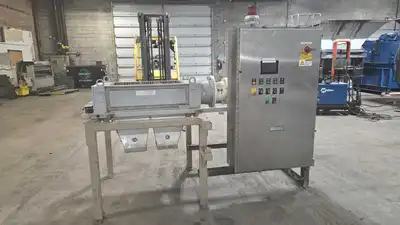

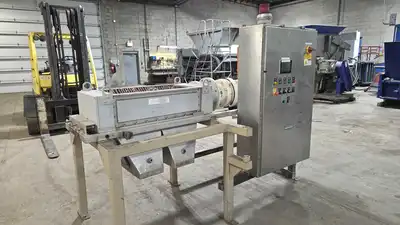

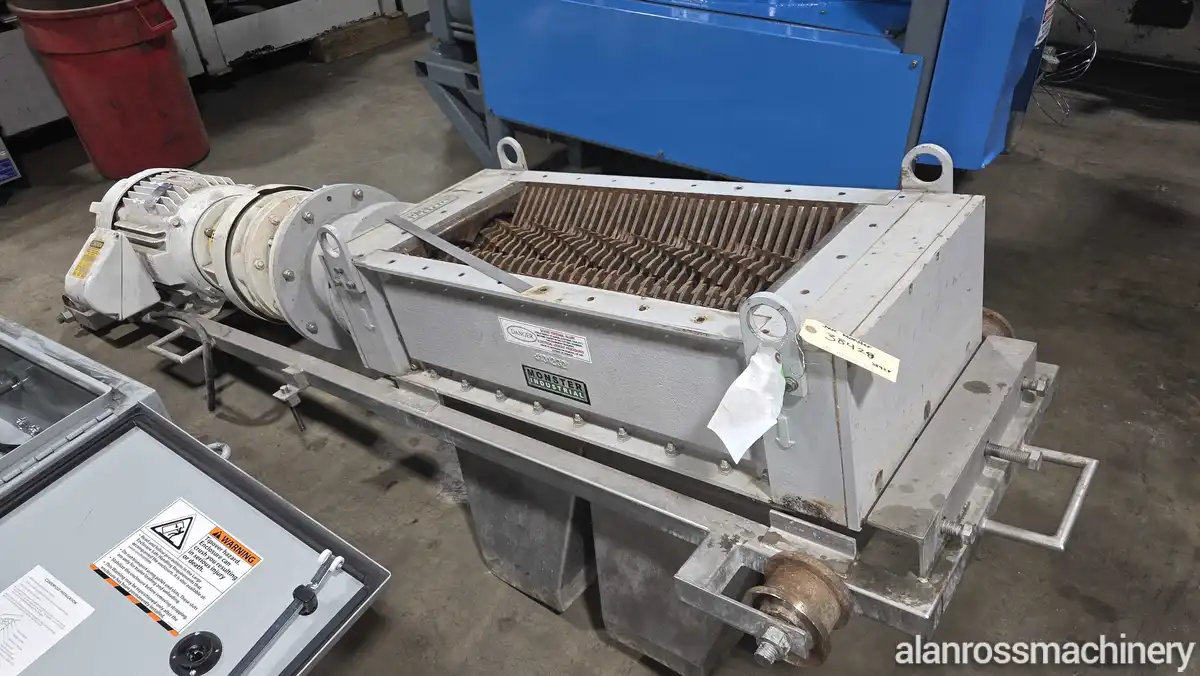

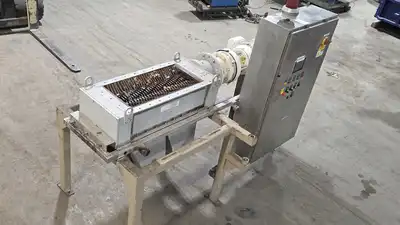

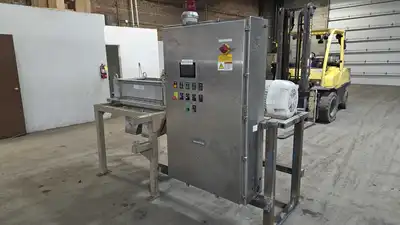

** PHOTOS SHOW TWO UNITS. ONLY ONE UNIT INCLUDED.
MANUFACTURER: JWC Environmental (Monster Industrial)
MODEL: 4-SHRED-1-H-3200
TYPE: Dual-Shaft Low-Speed High-Torque Shredder
MOTOR: Baldor 25 HP (7.5 kW), TEFC
VOLTAGE: 230/460V, 3-Phase, 60Hz
GEARBOX: Inline Planetary, 29:1 Ratio
THROUGHPUT: 108 ft³/hr (3.1 m³/hr) theoretical
FULL LOAD TORQUE: 846 lb-ft (1,147 N-m)
CUTTER DIAMETER: 4-3/4" (120 mm)
SHAFT HEX SIZE: 2" (50 mm)
CUTTING CHAMBER: 30" length x 15" Wide
BLADE WIDTH: .29"
SEAL TYPE: Severe-duty mechanical seal cartridge
DIMENSIONS (OAL): 83"L x 32"W x 44"H
WEIGHT: 2,350 lbs
MATERIALS: Cast ductile iron body, hardened alloy steel
cutters/shafts, stainless steel hopper
CONTROLS: NEMA-4X SS control box with PLC,
load-sensing, auto-reverse, E-stop
TORQUE PROTECTION: Detent coupling (optional)
