ADIX NOVExii500EA Explosion Isolation Flap Valve
Have one to sell?
1 available

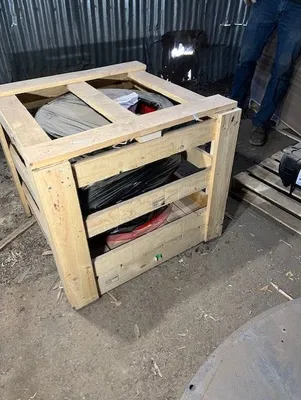

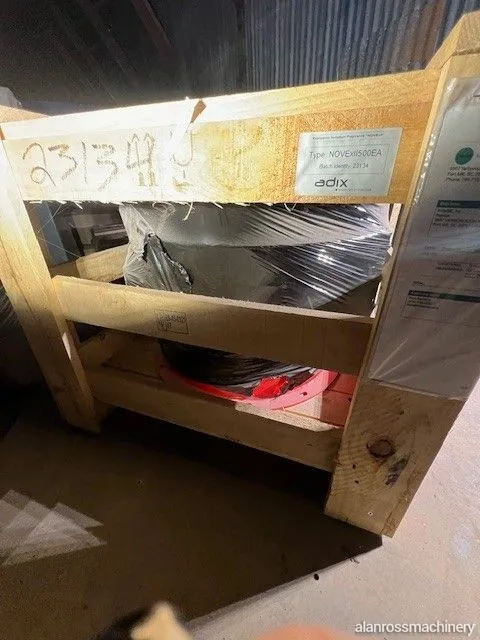

Used Adix NOVExii500EA passive explosion isolation flap valve, 500 mm (20") diameter. Designed for installation in industrial ductwork to prevent explosion propagation in combustible dust handling systems. The valve stays open during normal airflow and closes instantly when triggered by explosion overpressure, isolating upstream equipment and protecting personnel.
Suitable for organic, inorganic, and metallic dusts up to St3 classification (Kst ≤ 305 bar·m/s). Installs in horizontal, vertical, or inclined ducts and supports both push (pressure) and pull (vacuum) airflow configurations. Compact, lightweight design at 107 kg for easy integration into existing ductwork.
ATEX certified per EN 16447:2014 and EN 15089:2009 standards. NFPA 69 compliant. Ideal for dust collection systems, grain handling, woodworking, metalworking, pharmaceutical, and chemical processing facilities.
ADIX NOVExii500EA — Passive Explosion Isolation Flap Valve
GENERAL
Manufacturer: Adix Ingeniería S.L.U. (Spain)
Model: NOVExii500EA
Type: Passive Explosion Isolation Flap Valve
Duct Diameter: 500 mm (20")
Weight: 107 kg (236 lbs)
Construction: Carbon Steel (painted) / Stainless Steel 304 option
Condition: Used
EXPLOSION PROTECTION RATINGS
Max Reduced Pressure (Pred): 1.0 barg (for DN ≤ 500)
Dust Classification: Up to St3
Max Kst: ≤ 305 bar·m/s
Max Pmax: ≤ 9.2 bar
Min Ignition Energy (WED): ≥ 1 mJ
Min Ignition Temp (MIT): ≥ 110°C
Dust Concentration Limit: < 500 g/m³
Suitable Dust Types: Organic, inorganic, metallic
INSTALLATION
Orientation: Horizontal, vertical, or inclined (up to 90°)
Airflow: Push (pressure) and pull (vacuum)
Flap Position: Normally open (low pressure drop)
Activation: Mechanical — triggered by explosion overpressure
Locking: Automatic locking in closed position upon activation
CERTIFICATIONS & STANDARDS
ATEX Certificate: LOM22atex1035x (LOM Spain — Notified Body)
European Standards: EN 16447:2014, EN 15089:2009
US Standard: NFPA 69 compliant
Tested Sizes: Up to 1250 mm diameter
OPTIONAL ACCESSORIES
- Remote flapper reset
- Wear detector
- Automatic cleaning system
- Differential pressure control
- Dust layer detector (Cat 1D, 2D, or 3D)
APPLICATIONS
Dust collection systems, grain & food processing, woodworking,
pharmaceutical manufacturing, chemical processing, metalworking,
recycling & shredding operations, biomass handling
