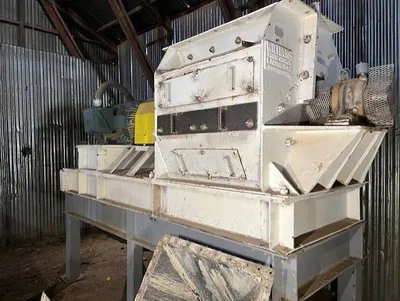

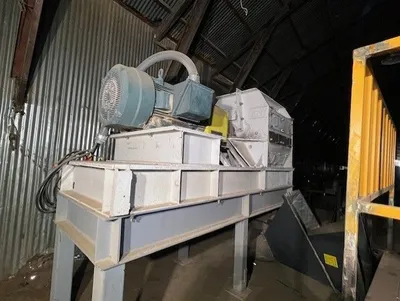

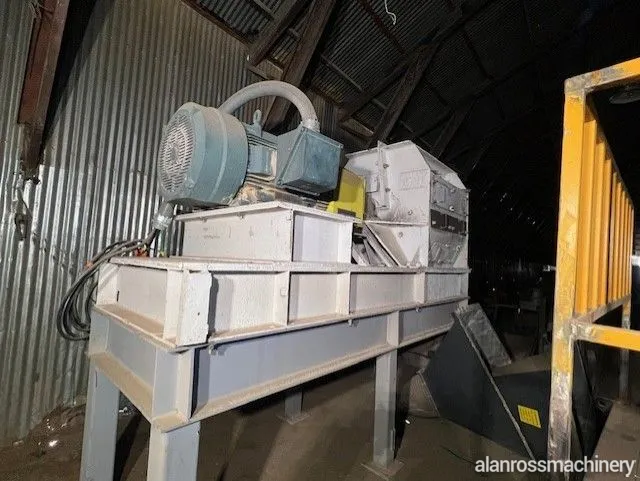

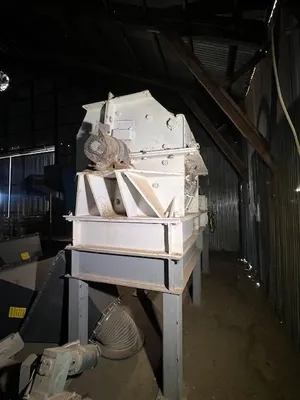

Model 40 Used Williams MeteorMill Shredder

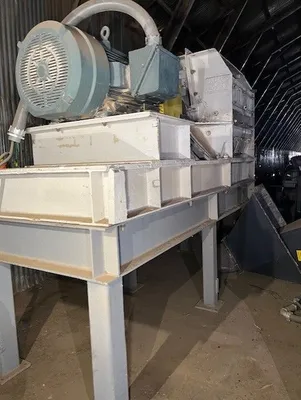

Approximately 250HP 3/60/440 Volt Electric Motor

General Overview:
The Williams Meteor High Speed Hammer Mill is a high-capacity fiberizing unit
specifically designed for the absorbent medium and non-woven fiber markets.
The design focuses on producing high-quality fluff with minimal fiber
damage and high hammer-tip speeds for fine product output.

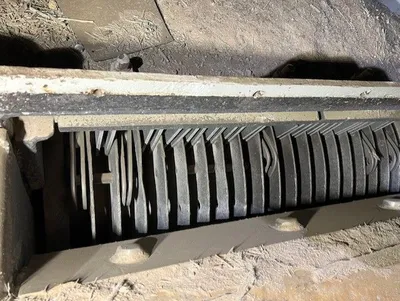

Rotor and Hammer Assembly:
- Rotor Diameter: 36 inches
- Rotor Width: 38 inches
- Hammer Type: Swinging hammer design
- Hammer Dimensions: 2-1/2 inches wide x 1/4 inch thick
- Hammer Arrangement: Patented staggered cluster configuration for 100%
surface coverage across center discs
- Hammer Circle: Large diameter design allows for lower RPM operation
while maintaining necessary tip speeds

Feeding and Intake:
- Top Feed Opening: 44 inches Long x 8-1/2 inches Wide
- Feed System: Four independently driven pinch rolls
- Roll Tensioning: Spring-loaded and adjustable
- Material Compatibility: Configured for sheets or continuous rolls
- Feeder Breaker Bar: Innovative single-unit removable design for quick
interchange and jam clearance

Construction and Materials:
- Housing Material: Heavy-duty 1/2 inch welded steel plate
- Rotor Material: Heavy-duty 1/2 inch plate steel construction
- Discharge: Large diameter housing provides high discharge area to
prevent clogging and reduce pneumatic transport requirements

Adjustability and Precision:
- Breaker Bar Clearance: Externally adjustable in .002 inch increments
- On-the-fly Adjustment: Clearance can be modified while equipment is
in operation
- Tray Assembly: Adjustable tray design to ensure product quality
consistency

Performance Characteristics:
- Product Quality: Produces fiberized material with less than 5% fiber damage
- Operating Features: Reduced vibration and noise due to optimized
hammer circle dynamics
- Maintenance: Large hammer circle reduces bearing downtime and wear
