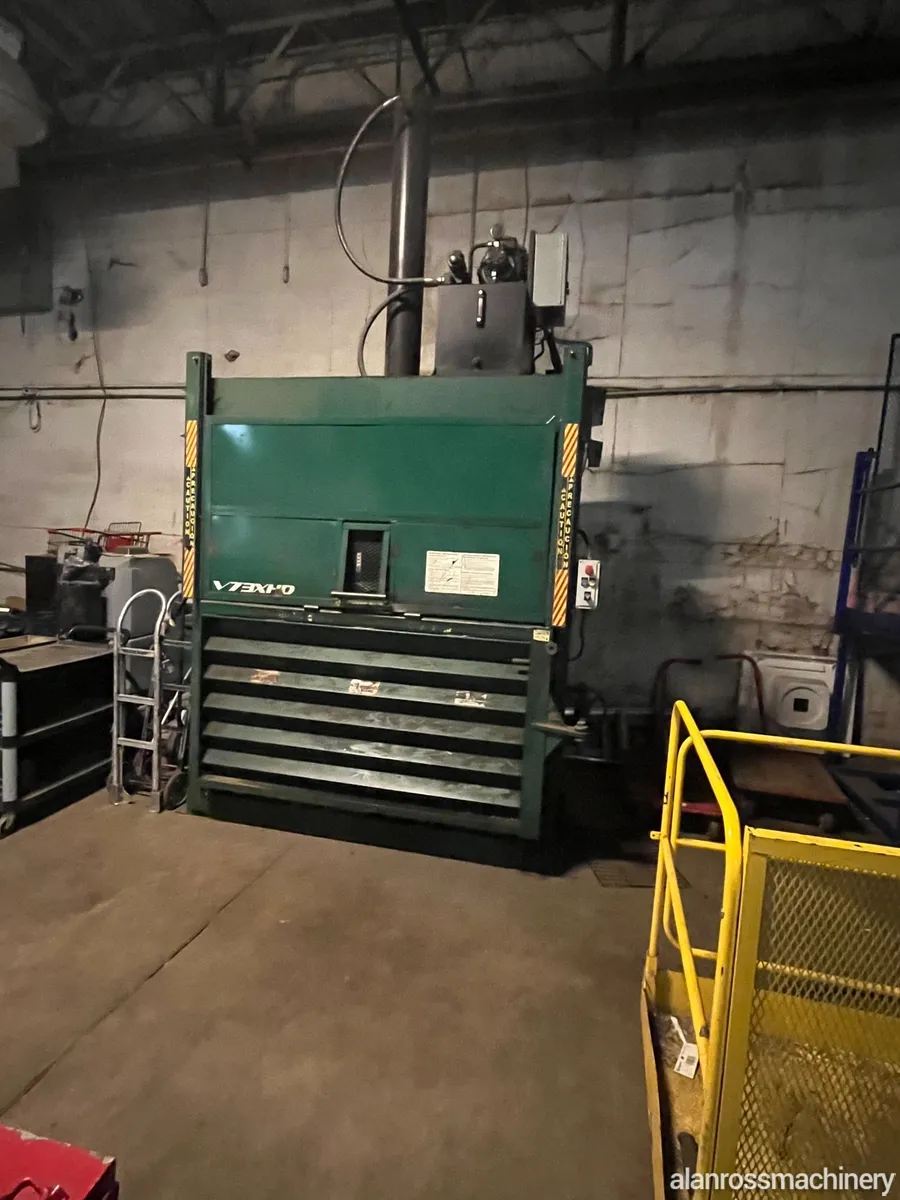

Bace V73XHD Used Baler

Key Specifications

Nominal Bale Size: 72″ W × 30″ D × 48″ H

Bale Weight (OCC): Up to 1,600 lbs

Bale Volume: 60 cu ft

Number of Bale Tie Slots: 7

Compact Force (lbs): Normal ~84,667 lbs; Maximum ~96,213 lbs

Platen Pressure: ~43 PSI

Average Cycle Time: ~67 seconds

Loading Height: 49.50″

Hydraulic / Electrical & Mechanical

Motor: 20 HP, 3‐phase

Voltage options (3 phase): 208 V full load amps ~59 A; 230 V ~54 A; 480 V ~27 A

Pump Flow: ~15 GPM

Normal System Pressure: ~2,200 PSI; Maximum ~2,500 PSI

Cylinder: Bore 7″ × Stroke 60″

Hydraulic Tank Capacity: ~30 gallons
