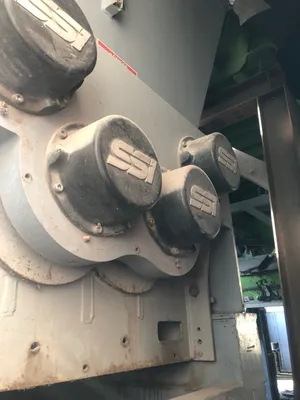

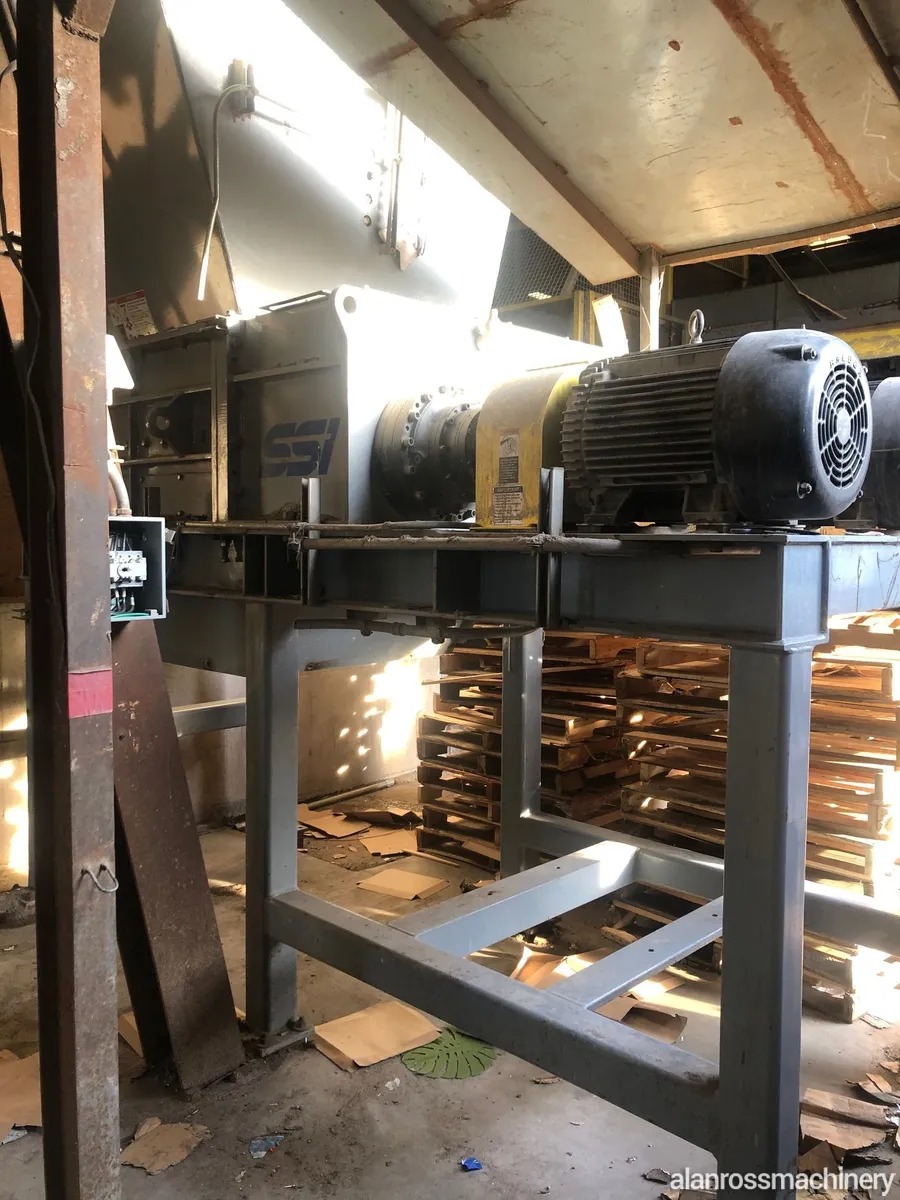

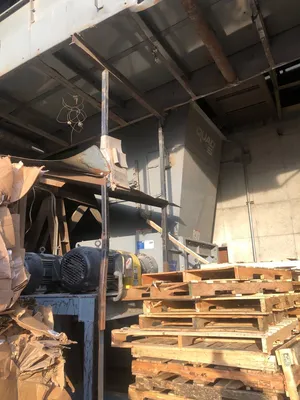

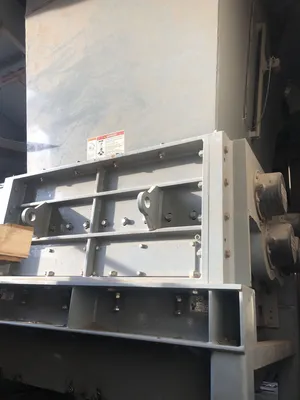

Model Q70ED Surplus SSI Quad Shaft Shredder

SSI Model Q70ED Shredder, including:

> Shredder Features:
Patented SSP - Severe Shock ProtectionTM Torque Coupling
Patented ACLS - Advanced Cutter Locking SystemTM
Proprietary Bearing & Seal Arrangements at Shredder Gearbox and Endplate
CNC Machined Shredder Frame – Torsion Box Design, Modular Construction
Heavy-duty Gear Reducer Configured to Suit Application
> Shredder Hardware:
44" (1127mm) wide x 40" (1026mm) long Cutting Chamber
80HP (60kW) Total; Dual 40HP (30kW) Drive Motors (TEFC)
14.4” (365 mm) Diameter, 4140 HT Cutters Designed for Application
5.2” (132 mm) High Strength Hexagonal Shafts
Standard Funnel-style Feed Hopper; Custom designs also available
Shredder Support Stand, 60” (1524mm) tall
Removable screen assembly; 1” (25mm) to 4” (102mm) sizes are available

Controls: Full Electrical Controls at 460V/60Hz are included

> Control Features:
Amperage Overload & Torque Coupling Slippage Reversing on Shredder
Auto shutdown on frequent reversal of shredder
System “fault codes” displayed on touch screen to simplify diagnostics and troubleshooting
E-stop circuit allows for expansion
Logic & I/O included for sequence interface to feeding and discharge equipment

>Panel Design Standards:
Allen Bradley Programmable Controller
UL-508 / CUL standards (listing additional, if required)
3.8” (97mm) Monochrome Touch Screen Operator Interface
NEMA 4 (IP66) Rated Enclosure(s)
24VDC Control Voltage (other options available)
IP2x (touch safe) on all power components
10% extra I/O space allowance
Minimum SCCR standard of 35kA (higher ratings available)

>Control Notes:
Integrated auxiliary device starters and control packages available at additional cost
