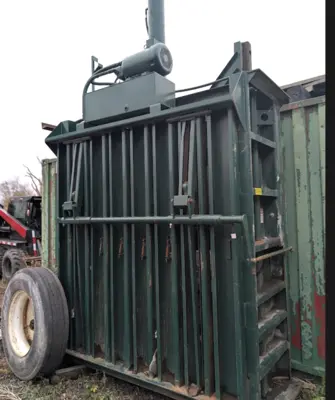

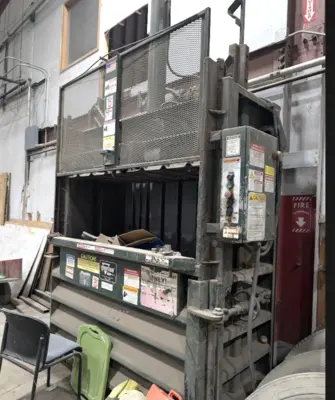

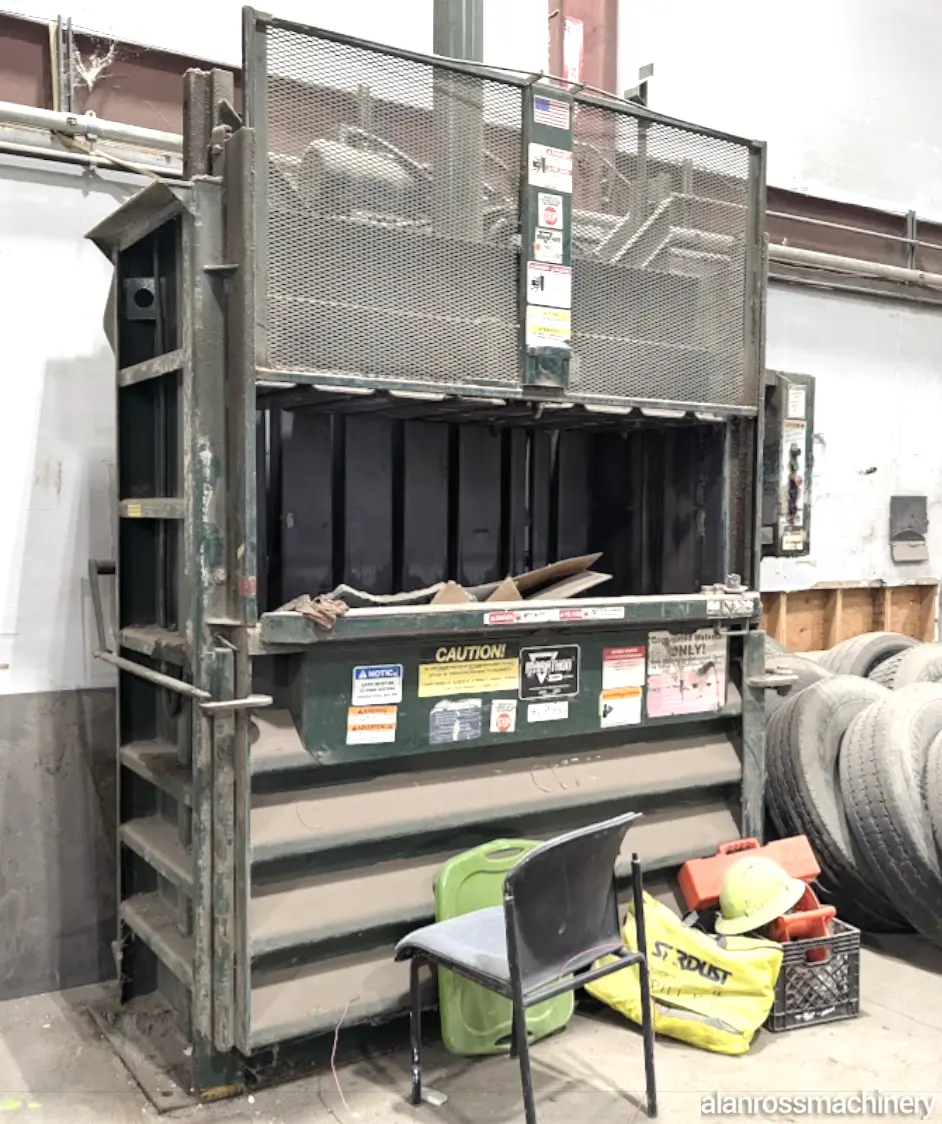

Marathon V-7230 HD Used Downstroke Baler

• Specification: V-7230 HD
• Bale size: 72″ wide × 30″ deep × 48″ high
• Cylinder (hydraulics): 6″ bore × 3.5″ rod × 48″ stroke
• Motor: 10 HP, 3-phase (208/230/460 V)
• Pump flow: ~10.5 GPM
• System pressure: Working pressure ~2,000 psi; max ~2,200 psi
• Platen (compression) force: ~62,200 lbs (on spec sheet)
• Cycle time: ~56 seconds per bale
• Feed opening: 72″ wide × 25″ high (feed gate)
• Bale weight (occ): Up to ~1,400 lbs
• Baler weight (dry): ~5,400 lbs (per spec sheet)
• Overall dimensions: According to Marathons specs: ~100″ wide × 44.5″ deep × 142″ tall (per older spec sheets)
• Overall width: 100 in
• Overall depth: 44.5 in
• Overall height: 142 in
• Feed height: 50.25 in
• Bale door clearance: 70 in
• Control voltage: 120 VAC
• Electrical: 208/230/460 Volt, 3-Phase
• Body floor: 7 Gauge Floor Plate, 8 Inch Structural Channel
• Platen face: 1/4 Inch Plate, 8 Inch Structural Channel
• Ejector: Manually Engaged, Chain Type
