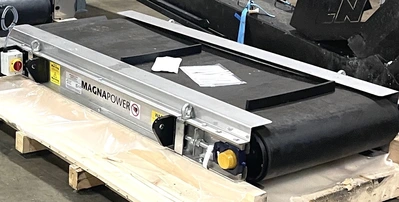

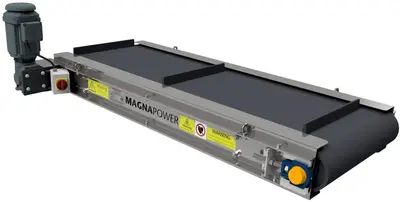

40" x 76" New Magnapower OCP3410H Crossbelt Magnetic Separator
Have one to sell?
New
42" Maximum Field Width
68.5" Max Belt Lift & Discharge Distance (Material Dependent)
Approximate Maximum Working Gap: 12"
13,000 gauss per 2/cm @ 250mm (5/8")
7,000 gauss per 2/cm @ 350mm (8")
Approximate Belt Width: 40"
Approximate Belt Speed: 4.26ft/s
Magnetic Flux Density- High powered non-deteriorating compact permanent magnet design. Alternating poles contain the magnetic field into the working area and minimize stray magnetic flux. This is a deep field high intensity magnetic system, with a similar performance to many rare earth magnet systems at the working gap.
Lifting Eyes & Stainless Steel Framework
