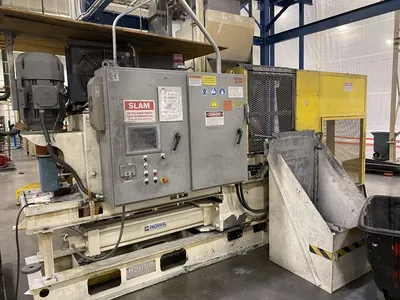

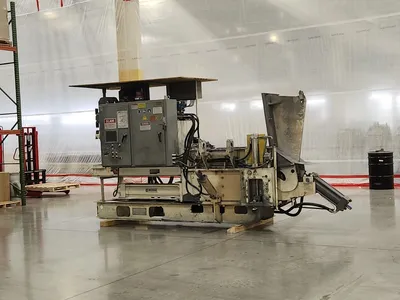

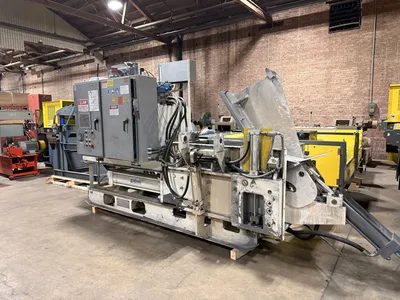

Model 12 DC Galland Henning Briquetter

GENERAL SPECIFICATIONS:
- Type: Dual Compression Baler (for non-ferrous, light steel clippings, and fluffy scrap)
- Mounting: Skid-mounted, fully self-contained
- Operation: Hydraulic; automatic compression and ejection cycle
- Bale Ejection: Side ejection for easy discharge
- Gate: Patented vertical self-cleaning gate

CYLINDER & PRESSURE:
- 1st Compression Cylinder: 8 in (203 mm) bore, 395 psi (27.0 N/cm²)
- 2nd Compression Cylinder: 8 in (203 mm) bore, 1,330 psi (93.0 N/cm²)

BALE CHARACTERISTICS:
- Bale Size (H x W x L): 12 x 6 x Variable in (305 x 155 x V mm)
- Average Bale Weight (Aluminum): 20 lbs (9 kg)
- Cycle Time: 45 seconds
- Bale Output Rate: ~80 bales per hour
- Approx Bale Weight (Steel): 40 - 70lbs
- Approx Bale Weight (Aluminum): 20 - 30lbs

POWER REQUIREMENTS:
- Motor: TEFC (Totally Enclosed Fan Cooled)
- Power: 25 HP (18.5 kW)
- Electrical: 3-Phase (typically 460V or 575V depending on configuration)

DIMENSIONS & WEIGHT:
- Overall Length (A): 181 in (4,560 mm)
- Overall Width (B): 79 in (2,000 mm)
- Overall Height (C): 82 in (2,080 mm)
- Press Box Length (D): 48 in (1,220 mm)
- Press Box Width (E): 21 in (530 mm)
- Press Box Height (F): 12 in (305 mm)
- Press Opening (E x G): 21 x 48 in (530 x 1,220 mm)
- Hopper Width (H): 31 in (787 mm)
- Overall Width incl. Hopper (J): 145 in (3,680 mm)
- Approx. Shipping Weight: 13,500 lbs (6,120 kg)

FEATURES:
- Self-contained hydraulic power unit
- Compact design, no foundation required
- Low maintenance and economical operation
- Designed for continuous industrial use
