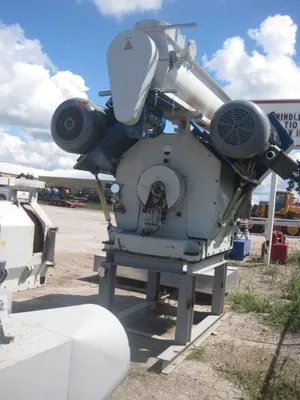

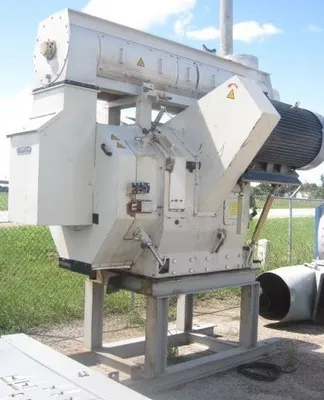

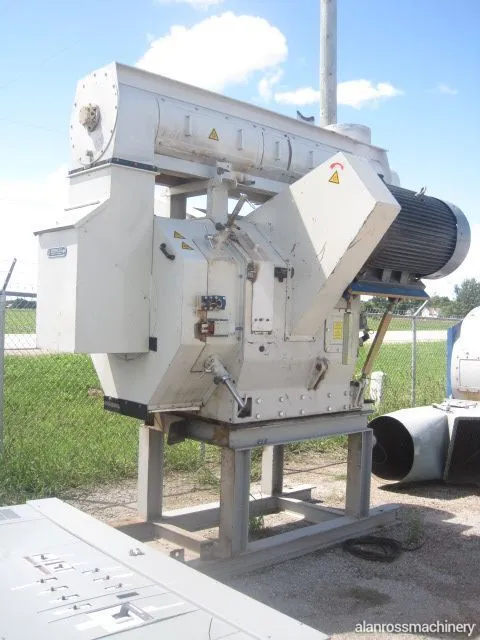

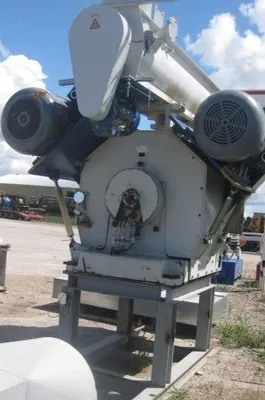

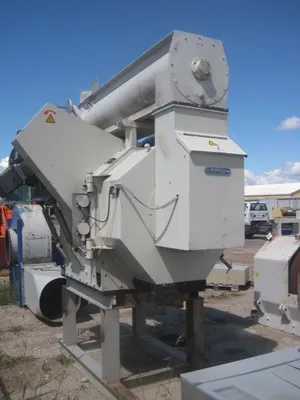

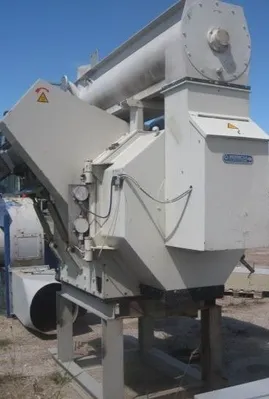

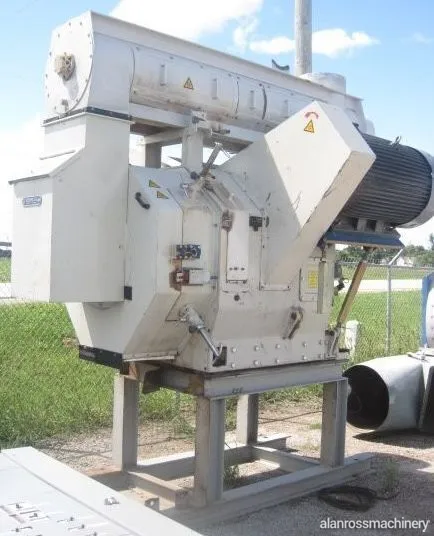

(2) Munch 650 Used Pellet Mills

(2) Units - One Without Motors.

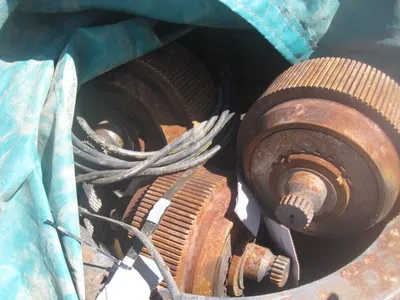

(1) LOT - Spare Dies and Rolls.

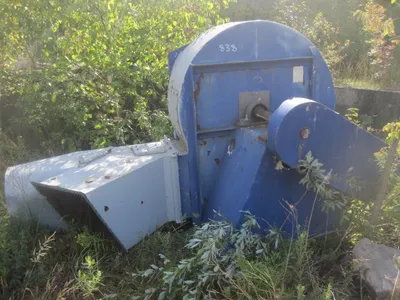

(1) Cooling Fan.

--- Factory Specifications ---

Motor and Drive:
* Main Drive Configuration: Dual-motor synchronous drive system
* Motor Power: 2 x 75 kW to 2 x 110 kW (approx. 200 - 300 HP combined)
* Transmission Type: High-torque V-belt drive
* Die Linear Speed: 5.5 meters per second
* Overload Protection: Pneumatic overload flap and shear pin assembly

Pelletizing Chamber:
* Die Inner Diameter: 650 mm
* Number of Press Rollers: 2 units
* Cutting Mechanism: Adjustable pellet cutting knives (1 set)
* Feeding System: Feed chute with integrated permanent magnet
* Conditioning: Dual inlets for steam and liquid additives

Capacity and Performance:
* Output Rating: 1.5 to 3.0 metric tons per hour (material dependent)
* Application: Biomass, wood, animal feed, and organic residues
* Lubrication: Progressive automatic greasing system (approx. 220 g/h)

Construction and Materials:
* Main Housing: Heavy-duty welded plate steel
* Door Construction: Corrosion-resistant stainless steel
* Die Material: High-chromium or high-carbon alloy steel (through-hardened)
* Roller Shells: Surface-hardened high-carbon steel (58-62 HRc)
* Seals: Dust-tight housing for industrial environments

Electrical and Controls:
* Control System: Integrated PLC for optimization and blocking protection
* Monitoring: Temperature control sensors for rollers and pelletizing chamber
* Safety: Automatic greasing pump status and main motor load monitoring
* User Interface: Visual display for material feed rates and motor load signals

Dimensions and Weight:
* Estimated Total Weight: 6,700 kg (approx. 14,770 lbs)
* Footprint: Compact ring-die configuration for industrial floor space efficiency
