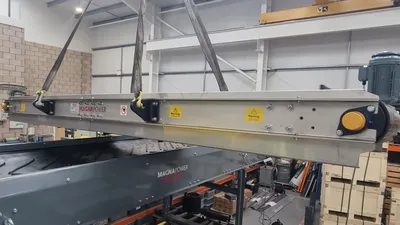

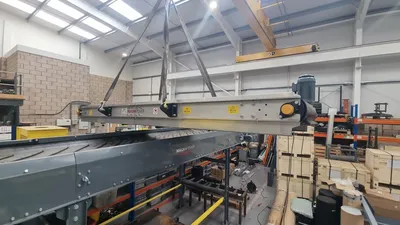

OCP 3512E (Expanded) New Overband Separator
Have one to sell?
1 available
Overband, self-cleaning magnet for many baling wire applications, features extended length conveyor, wrap around guarding, unique shaft protection system and extended belt width. Available in other size.
Custom manufactured specifically for banding wire applications to reduce jamming, wrapping and high labor and time costs.
Overall Dimensions (Nominal):
• Length (overall inc. flights): 3391 mm
• Width (overall): 2726 mm
• Height: 1491 mm
• Belt Widths:
• Product belt width: 1200 mm
• Overband belt width: 2000 mm
• Working Gap (typical): 350 mm
• Flight Depth: 50 mm
• Suspension Centres: 2290 mm
• Lifting Centres: 2390 mm
• Suspension / Lifting Lug Thickness: 25 mm
• Inside Lug Distance: 1355 mm
• Load at Suspension Points:
• Max ~1649 kg (one side)
• Max ~1342 kg (other side)
⸻
Electrical
• Drive Motor Power: 5.5 kW
• Supply Voltage: 400 V, 3-phase, 60 Hz
• Belt Speed (Overband): ~1.5 m/s
• Service Weight (Motor): 104 kg
• Electric Isolator: Supplied for belt drive motor
⸻
Installation & Safety
• Place overband between conveyor idlers where possible.
• Overband belt speed should be greater than the conveyor belt speed for optimal separation.
• All equipment within 1000 mm below magnet must be constructed from non-magnetic materials.
• Discharge chute (customer-supplied) must be non-magnetic and fit under belt edge.
• CAUTION: Open magnetic field – risk assessment required when installed.
⸻
