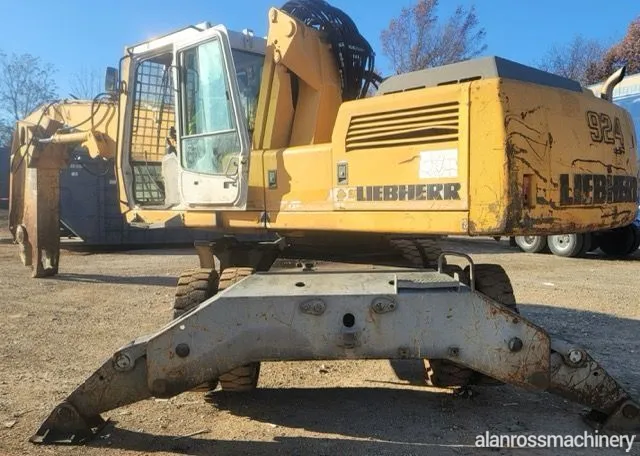

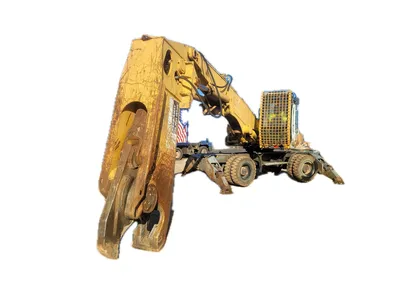

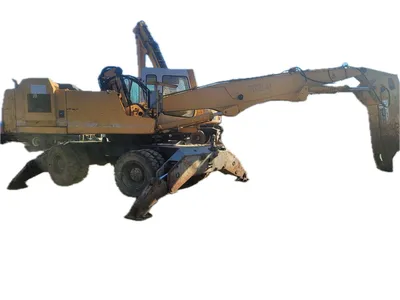

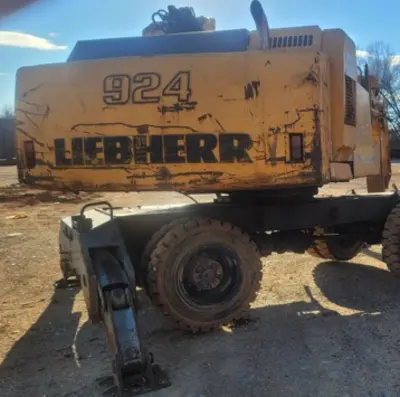

924 Used Liebherr Material Handling Crane w/ MSD 2000 Mobile Shear

## General
- **Model:** Liebherr A 924 Heavy Lift / A 924C Litronic
- **Type:** Material Handler / Wheel Excavator (Heavy Lift)
- **Operational Weight (w/o attachment):** ~20,910.7 kg (≈ 46,100 lb)

## Engine
- **Engine Model:** Liebherr D 934 L
- **Displacement:** ~7.0 L
- **Power Output:** ~135 kW (≈ 184 hp)
- **Aspiration:** Turbocharged, after-cooled
- **Emission Standard:** Reduced emissions

## Capacities
- **Fuel Tank:** ~400 L
- **Hydraulic Fluid Volume:** ~430 L
- **Electrical System:** 24 V, alternator 80 A

## Mobility
- **Travel Speed:** ~20 km/h
- **Steering Angle:** 30°
- **Tyres:** 11.00-20
- **Wheelbase:** ~2,800 mm
- **Ground Clearance:** ~355 mm
- **Undercarriage Width:** ~2,750 mm

## Dimensions
- **Transport Length:** ~10,150 mm
- **Transport Height:** ~3,270 mm
- **Upperstructure Clearance:** ~1,350 mm
- **Width with Stabilizers:** ~4,250 mm

## Working Equipment (Boom / Stick Options)
- **Boom 6.8 m + Stick 5.0 m**: Height ~13,000 mm | Reach ~11,500 mm | Depth ~3,300 mm
- **Boom 6.8 m + Stick 6.0 m**: Height ~14,000 mm | Reach ~12,500 mm | Depth ~4,300 mm
- **Boom 6.8 m + Stick 5.0 m + Grapple**: Height ~11,000 mm | Reach ~12,700 mm | Depth ~6,000 mm

## Hydraulics
- **Pump Type:** Variable displacement axial-piston
- **Flow Capacity:** ~215 L/min
- **Swing Speed:** ~8 rpm

## Performance
- **Breakout Force:** ~169.6 kN
- **Bucket Capacity (Std.):** ~1.35 m³
- **Load Ratings:** Based on ISO 10567 (75% tipping / 87% hydraulic limit)

## Features
- Heavy-lift design with reinforced hydraulics & undercarriage
- Configurable with grapples, clamshells, and specialty attachments
- Optimized for scrap, bulk, and material handling operations
