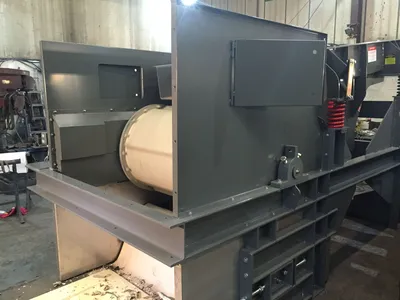

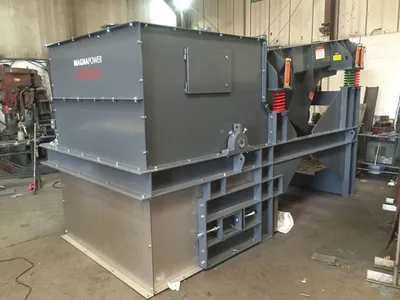

30" (750mm) x 48" (1200mm) New Magnapower Drum Magnet
Have one to sell?
New
Engineered for removal of iron and magnetic metallics from shredded or size segregated aluminum where high quality aluminum output is required.
Combined magnetic system configuration:
- Continuous pole.
- Deep magnetic field.
- Non-deteriorating.
- Rare earth or ferrite magnetics (Rare Earth Standard)
- Deep field & high intensity magnetic unit for top fed retention.
Other features:
- Manganese impact/wear resistant shell.
- Stainless steel end flanges (approx 2").
Includes:

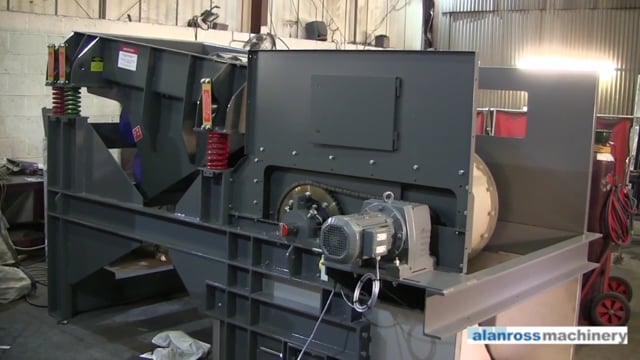

- SEW geared motor unit.
- Chain drive.
- Motor gearbox base frame.
- Lifting points.
Optional accessories (not included):
- Optional 1.2m x 3m long heavy duty vibratory feeder with 8mm thick tray section, 8mm Abro impact liner at first 1m section. 500mm non-magnetic end section, and (2) 2.6kW motors.
- Optional unified and integrated base frame to support drum and feeder. With top guarding for drum with mesh to side and top for inspection. Stainless discharge chutes. Adjustable Manganese splitter/baffle. Adjustable rubber buffers to prevent impact on drum surface. (Add $9,800).
- Optional control panel.
