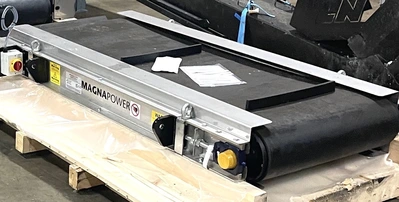

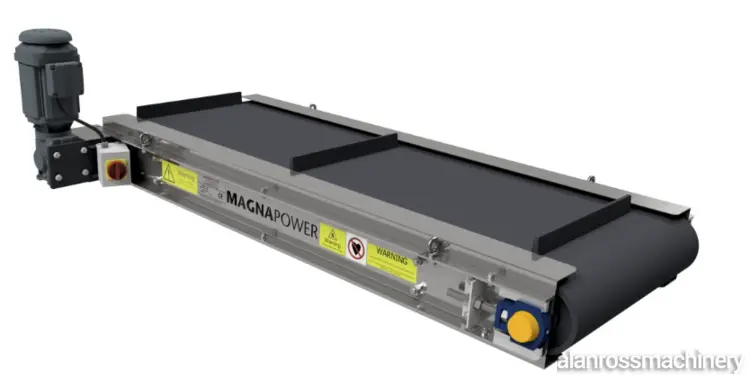

48" x 85" New Magnapower OCP3412H Crossbelt Magnetic Separator
Have one to sell?
1 available
48" Maximum Field Width
62.9" Max Belt Lift & Discharge Distance (Material Dependent)
Hydraulic Motor
Approximate Maximum Working Gap: 12"
13,000 gauss per 2/cm @ 250mm (5/8")
7,000 gauss per 2/cm @ 350mm (8")
Approximate Belt Speed: 4.26ft/s
Lifting Eyes & Stainless Steel Framework
High powered non-deteriorating compact permanent magnet design.
Alternating poles contain the magnetic field into the working area and minimize stray magnetic flux. This is a deep field high intensity magnetic system, with a similar performance to many rare earth magnet systems at the working gap.
