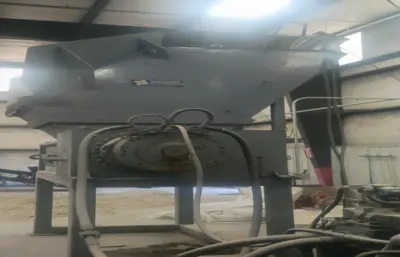

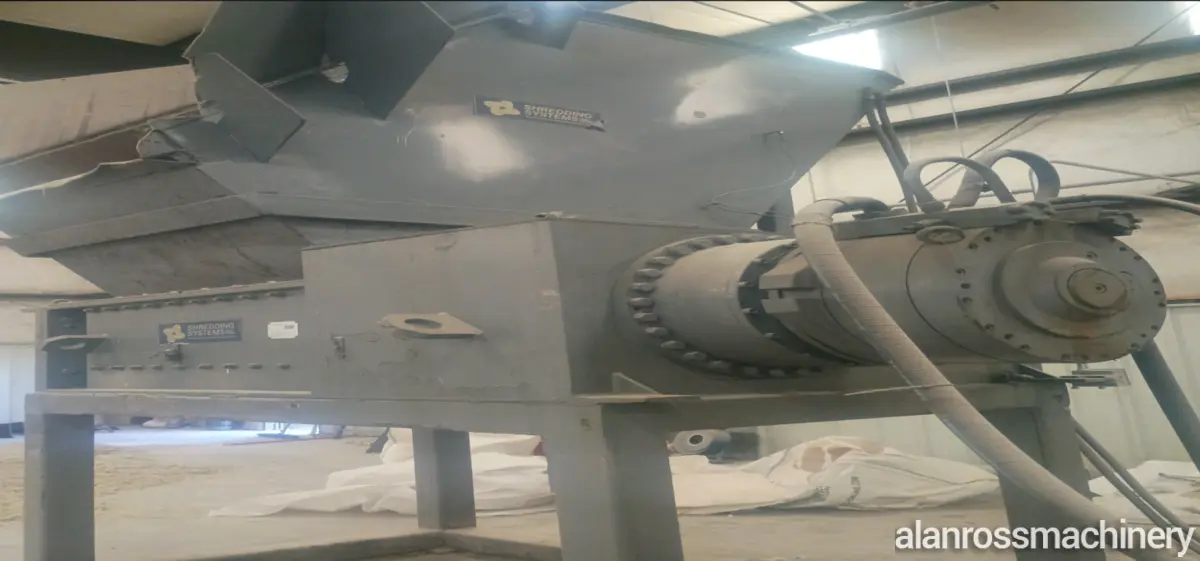

SSI Used 3000H Shredder

Motor & Drive:
- Drive System: Hydraulic
- Horsepower: 200 HP Total (Powered by Dual 100 HP Electric Motors)
- Shaft Speed: Approximately 22 RPM

Electrical:
- Voltage: 460V
- Phase: 3
- Frequency: 60 Hz
- Controls: Includes main electrical panel and operator station

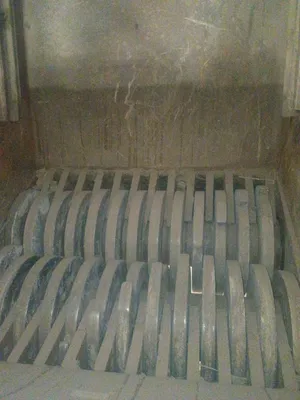

Cutting Chamber & Components:
- Hopper Opening: 62 in. x 84 in.
- Cutter Thickness: 2 in.
- Number of Cutters: Varies by configuration
- Cutter Diameter: 25 in.
- Shaft Diameter: 8 in.

Dimensions & Weight:
- Approximate Shredder Footprint: 204 in. L x 90 in. W x 96 in. H
- Approximate Shredder Weight: 45,000 lbs

Construction & Materials:
- Frame: Heavy-duty, welded plate steel construction
- Cutters: Hardened proprietary tool steel alloy
- Shafts: Forged and hardened alloy steel

Features & Options:
- Design: Dual-shear, slow-speed, high-torque rotary shredder
- Protection System: Automatic shock load protection reverses shafts to clear jams
- Cutter Locking: Patented Advanced Cutter Locking System (ACLS) to prevent cutter stack loosening
- Application: Suitable for a wide range of materials including tires, drums, plastics, and mixed solid waste

Notes:
- Specifications listed are for a typical factory configuration and may vary based on specific machine build and optional features.

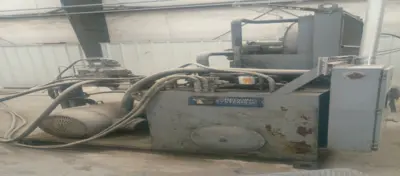

- Hydraulic Power Unit (HPU) and control panel are included but may be situated separately from the shredder body.
