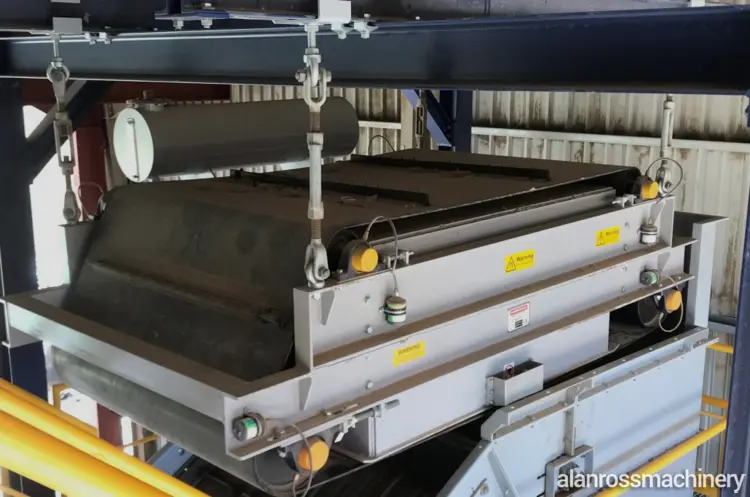

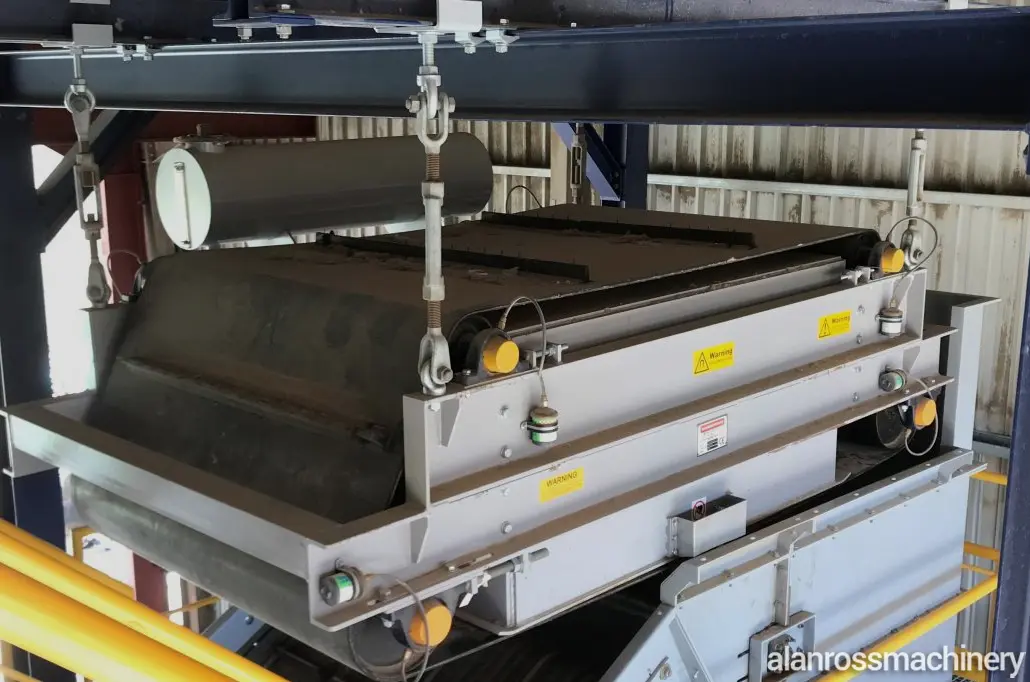

Overband Magnet - Air Cooled Electro Magnet 3.5kW

• Equipment:
• Type: Air-Cooled Electromagnetic Overband Magnet
• Condition: Used
• Cooling Type: Air Cooled
• Power Rating: 3.5 kW

• Capacity:
• Maximum Conveyor Width: 42–48 in.
• Typical Suspension Height: 14–15 in. (350–360 mm)
• Separation Type: Continuous Ferrous Metal Removal
• Magnetic Circuit: Deep-Penetrating Tripolar Field

• Magnetic System:
• Magnet Type: Air-Cooled Electromagnet
• Coil Insulation: Class H/Class N Nomex & Fiberglass
• Duty Cycle: 100% Continuous
• Bottom Wear Plate: Non-Magnetic Manganese Steel

• Electrical Requirements:
• Magnet Voltage: 115–220 VDC
• Power Consumption: 3.5 kW
• Rectifier Input: 400/415/480 VAC
• Phase: 3-Phase
• Frequency: 50/60 Hz

• Construction:
• Housing: Heavy-Duty Welded Steel
• Mounting: Suspended Overband Design
• Cleaning Style: Manual-Clean or Self-Cleaning Crossbelt Configuration
• Control Cabinet: IP65 / NEMA 4X Transformer Rectifier

• Typical Applications:
• Scrap Metal Recycling
• Aggregate Processing
• Mining
• Wood Waste
• C&D Recycling
• Municipal Solid Waste
• Tramp Iron Removal
