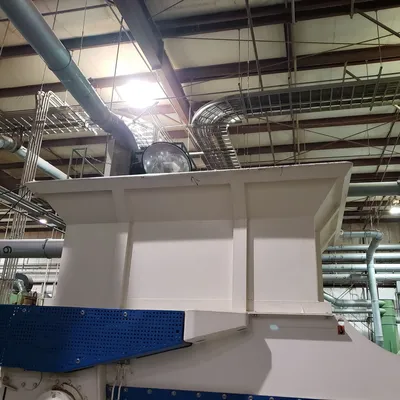

RG 62 / 150 Used Vecoplan Single Shaft Shredder

### ⚙️ General Specifications

* **Manufacturer:** Vecoplan (implied from context)
* **Model Type:** Single Shaft Rotary Grinder/Shredder

---

### मोटर Motor & Drive System

* **Motor Power:** Typically 150 HP
* **Voltage:** Commonly 460V, 3 Phase, 60Hz
* **Gearbox:** Heavy-duty gearbox (e.g., Flender)
* **Hydraulic Power Unit:** Dedicated unit for the feed ram

---

### 🔄 Rotor & Cutting Chamber

* **Rotor Diameter:** Approximately 14.56 inches (370mm) to 15 inches
* **Rotor Working Width:** Approximately 62 inches to 63 inches (around 1575mm to 1600mm)
* **Rotor Speed:** Around 145 RPM (some listings mention variable speed capabilities)
* **Cutters:**
* Approximately 72 or 74 cutters
* Often bolt-on, indexable (4-sided) cutting inserts
* **Rotor Features:** May include options such as:
* "Film & Fiber" (FF) rotor
* Cored rotor (often for cooling purposes)
* Hard-faced cutter holders

---

### 📥 Hopper & Feeding System

* **Hopper Opening (to cutting chamber):**
* Approximate Width: 62 inches to 63 inches
* Approximate Length/Depth: 80 inches
* **Top Hopper Dimensions:** Can be larger (e.g., 89" x 103" or 102" x 89")
* **Feed Mechanism:** Horizontal hydraulic feed ram (pusher)

---

### 🖥️ Control System

* **Control Panel:** Often includes PLC (Programmable Logic Controller) and a touch screen HMI (Human Machine Interface)

---

### 📤 Discharge & Screening

* **Screen Type:** Utilizes changeable sizing screens to control output particle size
* **Screen Hole Sizes:** Various sizes available, common examples include 1/2", 3/4", 1", 2", 3", 3.5", 4", 4.5"
* **Discharge Type:** Typically end discharge, often designed for conveyor take-away

---

### ⏱️ Throughput

* **Capacity:** Highly dependent on the material being processed, screen size selected, and feed rate.
* One source indicates potential throughput up to 25,000 lbs/hr depending on the product.
* Another general reference for RG62 models suggests a range of 4,000-6,000 lbs/hr.

---

### 📏 Physical Dimensions & Weight (Approximate)

* **Overall Length:** ~168 inches (14 ft)
* **Overall Width:** ~114 inches (9.5 ft) (Note: some listings mention 10 ft)
* **Overall Height:** ~120 inches (10 ft)
* **Machine Weight:** Approximately 17,000 lbs to 17,500 lbs

---
