General Dimensions & Frame 📏

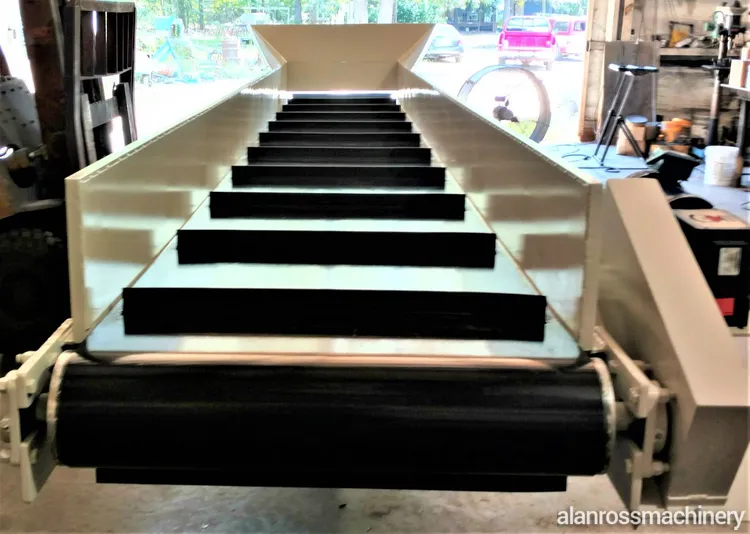

Conveyor Type: New Inclined Heavy Duty Feed Conveyor
Conveyor Length: 20 feet
Conveyor Width: 36 inches
Side Wall Height: 12 inches
Infeed Height: Approx. 6 inches from floor (to conveyor bottom)
Discharge Height: Approx. 135 inches (adjustable)
Leg Adjustment: 6 inches of height adjustment on all legs
Belt & Rollers ⚙️
Belt Type: Cleated Belt
Cleat Height: 2 inches
Cleat Spacing: 24-inch centers
Feed Roller: 6-inch diameter with bearings in a heavy-duty slide frame
Drive Roller: 8-inch diameter
Hopper 📥
Hopper Width: 60 inches
Hopper Height: Top is 42 inches from the floor
Design: Suitable for box dumper or front-end loader
Drive System & Electrical ⚡
Motor: 2 HP
Drive Mechanism: Chain & sprocket system for easy maintenance
Electrical Requirements: 460V / 3-Phase / 60Hz
