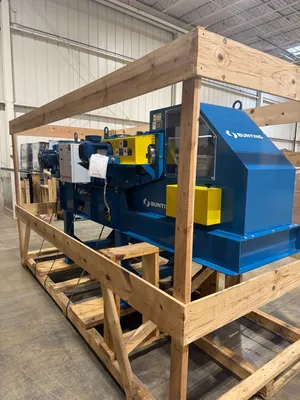

18" Surplus Bunting Eddy Current Sorter

18" Wide Effective x 96" Long
Features Mild Steel Frame Construction
Ultra High Strength Neodymium Rare Earth Magnetic Core w/ a Fiberglass Discharge Pulley.
Includes a Full Discharge Hood w/ an Adjustable Splitter for Maximum Separation.
Features Hinged Lexan Top Covers Full Length of Conveyor to Contain Dust.
Heavy Duty Support Frame w/ a Set of Legs at Each End of Approx. 60" Top of Belt Elevation.
18" Working Belt Width Urethane Flexwall Endless Belt w/ 1/2" Tall Sweeper Cleats.
Side Guards: 3" Tall Formed Over the Flexwalls.
Belt Drive: 1HP, 230/460V, 3 Phase, 60HZ
Eddy Current Rotor Drive: 2HP, 230/460V, 3 Phase, 60HZ for a Variable Speed of 1,000 to 2,500 RPM to Fine Tune Separation Efficiency.
Controls: (2) VFDs Mounted and Wired to Vary Belt and Rotor Speeds.
