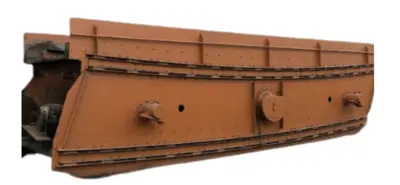

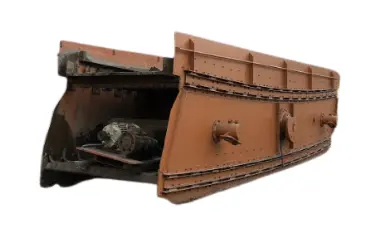

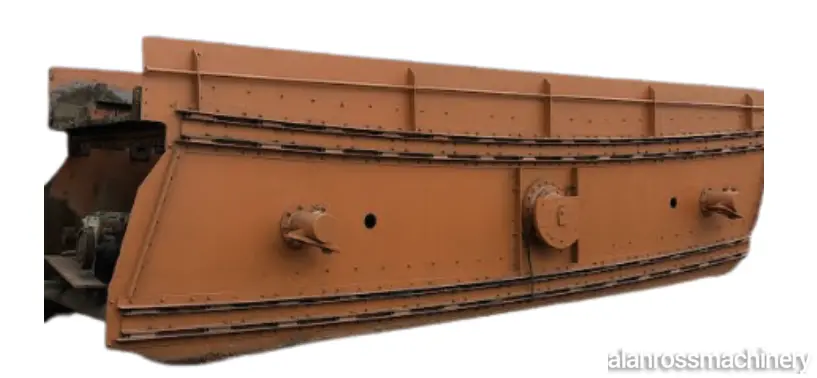

7' x 30' Used Bivitec Vibratory Screen

🔹 **Equipment Description**:
- **Model**: BIVITEC® Vibratory Screen
- **Size**: 7' x 30' (2400mm x 9000mm)
- **Deck Configuration**: Single/Double Deck (as available)
- **Screen Mat Material**: Highly wear-resistant polyurethane
- **Screen Type**: Dual-vibratory action with flexible screen mats

🔹 **Key Features**:
- ✅ Eliminates blinding and plugging for uninterrupted screening
- ✅ High screening capacity with a large effective area
- ✅ Rugged construction for long life and minimal maintenance
- ✅ Efficient for high-moisture and difficult-to-screen materials
- ✅ Suitable for a wide range of materials, including:
- Manufactured sands, wood waste, shredded tires
- Incinerator ash, clay, compost, and more

🔹 **Technical Highlights**:
- **Drive System**: TEFC motor with V-belt drive and cardan shaft
- **Vibration Mechanism**: Dual-weight dynamic tensioning (up to 50g)
- **Screen Acceleration**: ~2g for box, up to 50g for mats
- **Structure**: Heavy-duty, weather-resistant steel frame
- **Energy Efficiency**: Low power consumption for high output
- **Optional Configurations**: Banana deck design for enhanced capacity

🔹 **Condition & Availability**:
- 🔄 **Used Unit**: Fully inspected and operational
- 📦 **Availability**: Immediate / Upon Request
- 🚚 **Shipping**: Freight options available upon request

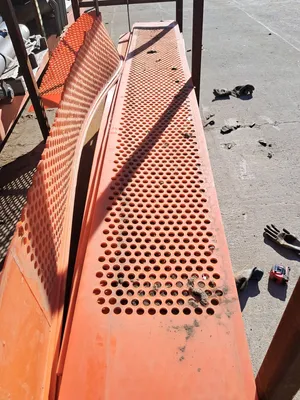

- ⚙️ **51 Screen Plates**: Approx. 104" x 11" w/ 5/8" OD Holes.

🛠 **Applications**:
- Aggregates, recycling, compost, C&D waste, auto shredder fluff, etc.
- Engineered to handle variable material conditions effectively.
