General Dimensions & Frame 📏

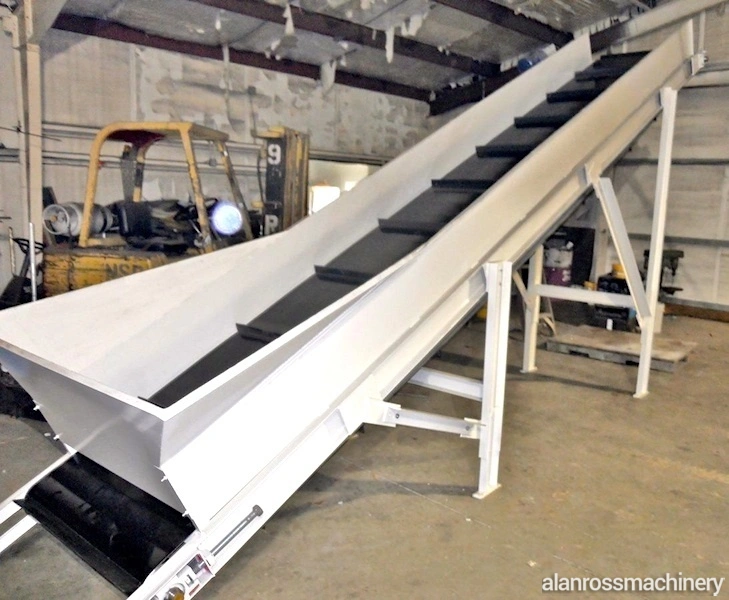

Conveyor Type: Heavy Duty Inclined Feed Conveyor
Conveyor Length: 26 feet
Conveyor Width: 36 inches
Side Wall Height: 12 inches
Infeed Height: Approx. 6 inches from floor (to conveyor bottom)
Discharge Height: Approx. 156 inches (to bottom of drive roller)
Leg Adjustment: 6 inches of height adjustment on all legs
Belt & Rollers ⚙️
Belt Type: Cleated Belt
Cleat Height: 2 inches
Cleat Spacing: 24-inch centers
Feed Roller: 6-inch diameter with bearings in a heavy-duty slide frame for alignment
Drive Roller: 8-inch diameter
Hopper 📥
Hopper Width: 60 inches
Hopper Height: Top is approx. 42 inches from the floor
Intended Use: Designed for a box dumper
Drive System & Electrical ⚡
Motor: 2 HP Motor/Gearbox
Drive Mechanism: Chain & sprocket system
Electrical Requirements: 460V / 3-Phase / 60Hz
