TMR 185 225 Danieli Lynx Hammermill Shredding System
Have one to sell?
1 available
(Located in the United States)
SYSTEM RATED** BY OEM FOR:
- 40 - 50 TPH @ AVG 75% FE CONTENT
- 90 TPH SURGE MATERIAL FLOW CAPACITY
- 50,000 TONS PER YEAR *ANTICIPATED* "NORMAL" YEARLY PRODUCTION BASED ON 50% AUTO BODIES & 50% MIXED LIGHT IRON
- .8 TO 1.1 T/M(3) DENSITY
- 18 - 24 KWH PER TON POWER CONSUMPTION
- REQUIRING UP TO 3 MVA FOR COMPLETE PLANT POWER SUPPLY
(RATING SUBJECT TO OEM TERMS & CONDITIONS OF USE & ARE ESTIMATES ONLY)

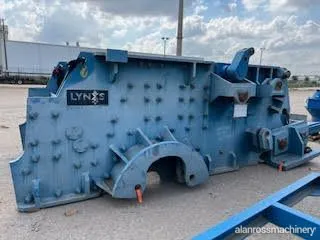

HEAVY DUTY TMR 185 × 225 SHREDDER:
- CAPPED DISC ROTOR - 6 PIN
- 50-80MM WEAR LINERS
- 2250MM X 800MM FEED OPENING (THROAT)
- 720RPM ROTOR MAX SPEED
- 155T APPROXIMATE OVERALL MILL WEIGHT
- HOPPPER AND BASE W/ VIBRATION ISOLATION
- DUST MITIGRATION MISTING SYSTEM
SYSTEM ALSO INCLUDES:
INFEED CONVEYOR

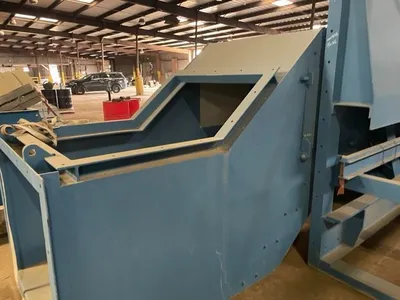

INFEED CHUTE & DOUBLE ROLL COMPRESSION FEEDERS (HAGGLUND DRIVES)
HYDRAULIC POWER UNITS
PIN PULLER
UNDERMILL VIBRATING PAN FEEDER
TRANSFER CONVEYOR
FERROUS CASCADE AIR SYSTEM FOR LIGHTS/FINES REMOVAL
STEINERT 1200MM MTE 120 X 120 DRUM MAGNET
1000MM WIDE 5.5KW FERROUS PICKING CONVEYOR
1050KW (~1400HP) SHREDDER MOTOR DRIVE
MOTOR CONTROL CENTER
1000MM WIDE 11KW RADIAL STACKING CONVEYOR
STEINERT UME 95 110 R OVERBAND ELECTRO CROSSBELT MAGNET
STEINERT NES 200 220 5009 V1 EDDY CURRENT SEPARATOR (1950 FEEDER WIDTH)
STEINERT NES 100 220 5009 V1 EDDY CURRENT SEPARATOR (1950 FEEDER WIDTH)
NON FERROUS ENRICHMENT
ELECTRICAL SYSTEMS & PLANT CONTROL
**Note
Material production figures are estimates only and are based upon the assumption of optimum shredding conditions and a minimum 75% metallic content of feed materials. All spreads are given to reflect variation in infeed material density and normal plant delays caused by unshreddable or oversize material. In assessing the performance of any mill or plant, due regard must be given to the method of loading in order that sufficient material may be presented at the anvil in order to maintain continuous production under normal load. All estimates are made on the basis that the Lynxs Maximize control system is used.
