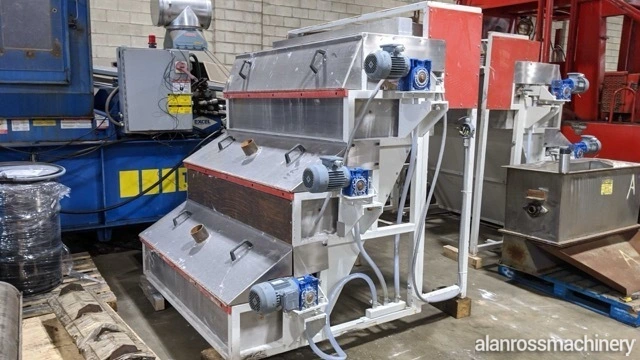

4" x 60" Used 3 Roll AKSA High Intensity Magnetic Roll Separation System

• ### **Magnetic Roll Specifications:**
• **Magnetic Roll Diameter:** 110 mm (4")
• **Magnetic Roll Width:** 1500 mm (60")
• **Magnetic Field Strength:** 14,000 gauss
• **Magnet Type:** Neodymium-Boron-Iron permanent magnets
• **Roll Configuration:** Triple-stage separation

• --

• ### **Construction:**
• **Frame Material:** All stainless steel construction
• **Magnetic Roll Construction:** Discs of neodymium-boron-iron magnets sandwiched with steel pole pieces
• **Belt Type:** Thin belt (5 to 20 mils thick) for feed conveyance
• **Overall Dimensions:** 2350 mm (L) x 1550 mm (W) x 2400 mm (H)

• --

• ### **Operational Features:**
• **Feed Capacity:** Capable of handling 0 to 10 metric tons per hour of quartz sand (particle size 0.1 mm - 0.7 mm) at 200°F
• **Variable Speed Drive:** Adjustable roll speed up to 250 feet per minute (using variable frequency control)
• **Splitter System:** Adjustable splitters to segregate magnetic and non-magnetic fractions
• **Temperature:** Standard magnets for up to 200°F operation

• --

• ### **Electrical System:**
• **Motor:** Siemens motor
• **Voltage:** 600 volts
• **Frequency:** 60 Hz (subject to confirmation)
• **Control Panel:** Included for easy operation and control of the system

• --
### **APPROXIMATE DIMENSIONS:**:
• 82" High
• 84" Deep
• 64" Wide Rolls
• 88" Overall Width
