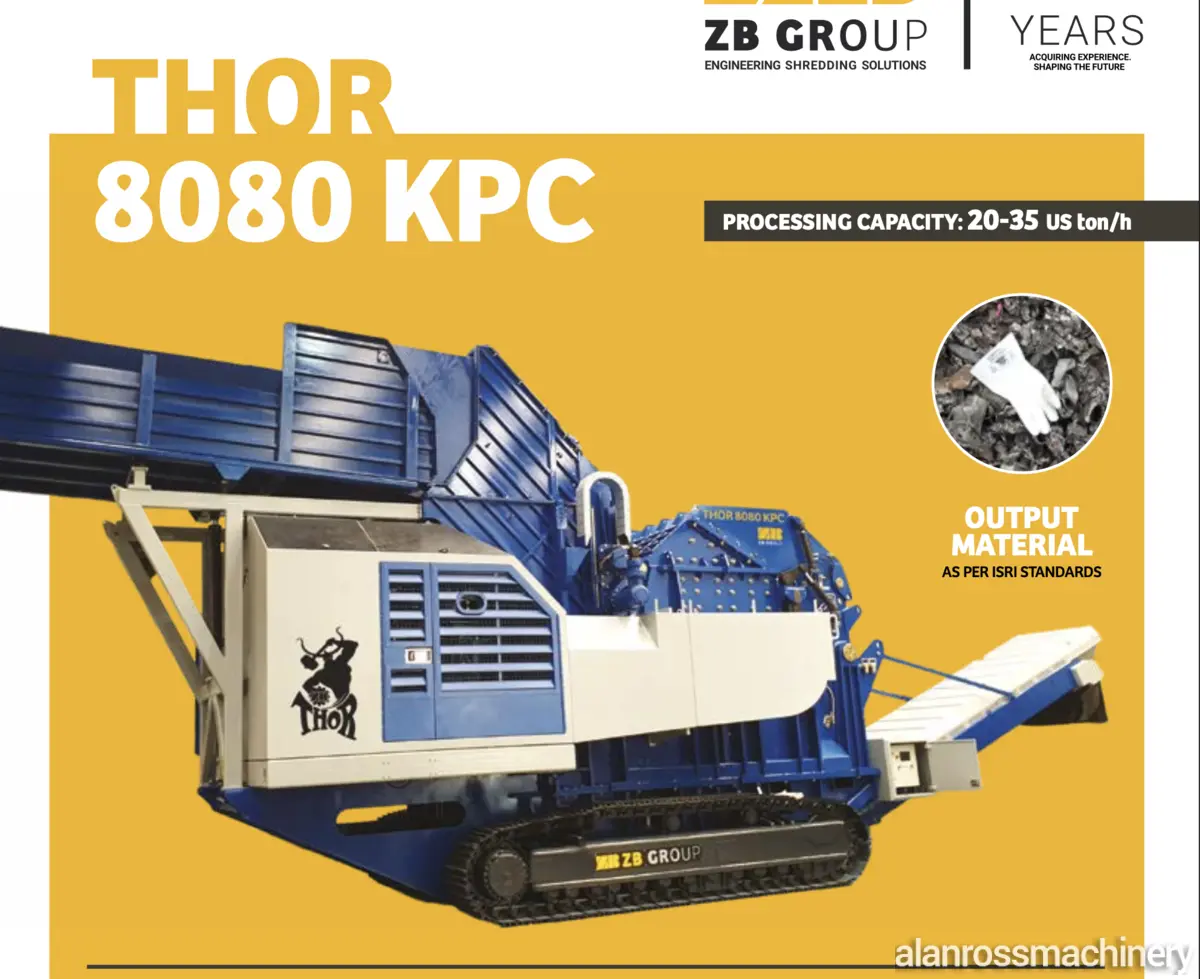

ZB GROUP THOR 8080 KPC | Crushers
Have one to sell?
New
PROCESSING CAPACITY: 20-35 US ton/h
• FINAL PRODUCT DENSITY UPGRADE
• FINAL PRODUCT VOLUME REDUCTION
• EASY APPROVAL OF OPERATING PERMITS
• HIGH MOBILITY, MOUNTED ON TRACK SYSTEM
• HIGH VERSATILITY OF MATERIALS TO PROCESS
• HIGH RESIDUAL VALUE
• OPTIMIZED FOOTPRINT
• REDUCED CIVIL WORK COST (Only Solid Ground Required)
• REDUCED ASSEMBLY TIME
• LOW ASSEMBLY COST
• HIGH GRATE SURFACE
• HIGH ROI, QUICK PAYBACK
• DESIGNED TO MINIMIZE WEAR COSTS
• DESIGNED TO OPTIMIZE MAINTENANCE OPERATIONS
• PROCESS MONITORING AND OPTIMIZATION SERVICE
• TOP QUALITY COMPONENTS (HARDOX, etc.)
• TOP QUALITY VENDOR LIST (SKF, SCHNEIDER ELECTRIC, PARKER, etc.)
FEEDING SYSTEM
Option 1 (tilting ramp and feeding roller):
• Tilting ramp length: 21.60 ft
• Tilting ramp width: 82"
• Tilting ramp open-air length: 12.80 ft
• Feeding roller diameter: 32"
Option 2 (tilting metallic conveyor and feeding roller):
• Tilting metallic conveyor length: 22.30 ft
• Tilting metallic conveyor width: 82"
• Tilting metallic conveyor open-air length: 13 ft
• Feeding roller diameter: 32"
HAMMERMILL SHREDDER
• FRZB-8080 Hammermill Shredder
• Internal width: 82"
• Hammers weight: 225 lb
• Replaceable grates
• Equipped with anvil
• Rotor hammer swing diameter: 78"
• Raisable rotor with upper frame
• Hydraulically operated reject door for unshreddables
• Driven by pulleys and V-belt
HYDRAULIC HAMMER-PIN EXTRACTOR
UNDERMILL VIBRATING FEEDER
• Length: 10 ft
• Width: 54"
HAMMERMILL SHREDDER
DISCHARGE CONVEYOR
• Reinforced rubber belt conveyor
• Width: 63"
• Length: 21.30 ft
REMOTE CONTROL
• Includes tilting ramp operation control
• Includes feeding roller operation control
• Includes hammermill shredder ejection gate opening and closure control
ENGINE
• CATERPILLAR C32 (1125 bHP) TIER 4 diesel engine
WEIGHT AND DIMENSIONS
Option 1 (tilting ramp and feeding roller):
• Length: 60.50 ft
• Width: 13.50 ft
• Height: 24 ft
• Weight: 290,000 lb
Option 2 (tilting ramp and feeding roller):
• Length: 61.50 ft
• Width: 13.50 ft
• Height: 25 ft
• Weight: 305,000 lb approx.
OPTIONALS
• Complete turnkey system with (or without) downstream sortation.
• Fully capped rotor
• Magnetic separation unit (electromagnetic drum)
• Metals separation unit (ECS)
• Manual sorting unit
• De-dust system
