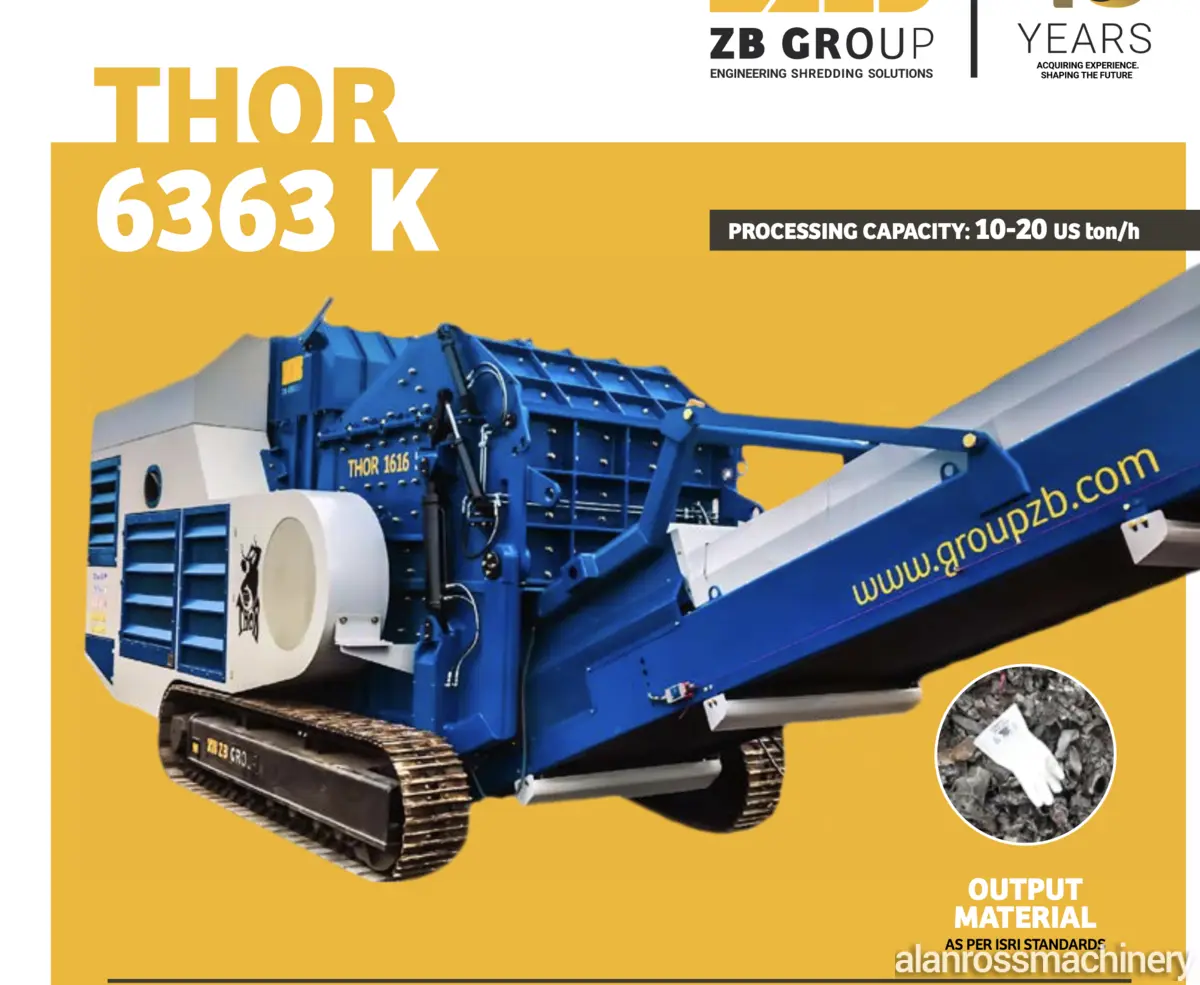

ZB GROUP THOR 6363k | Crushers
Have one to sell?
ConditionNew
New
PROCESSING CAPACITY: 10-20 US ton/h
• FINAL PRODUCT DENSITY UPGRADE
• FINAL PRODUCT VOLUME REDUCTION
• EASY APPROVAL OF OPERATING PERMITS
• HIGH MOBILITY, MOUNTED ON TRACK SYSTEM
• HIGH VERSATILITY OF MATERIALS TO PROCESS
• HIGH RESIDUAL VALUE
• OPTIMIZED FOOTPRINT
• REDUCED CIVIL WORK COST (Only Solid Ground Required)
• REDUCED ASSEMBLY TIME
• LOW ASSEMBLY COST
• HIGH GRATE SURFACE
• HIGH ROI, QUICK PAYBACK
• DESIGNED TO MINIMIZE WEAR COSTS
• DESIGNED TO OPTIMIZE MAINTENANCE OPERATIONS
• PROCESS MONITORING AND OPTIMIZATION SERVICE
• TOP QUALITY COMPONENTS (HARDOX, etc.)
• TOP QUALITY VENDOR LIST (SKF, SCHNEIDER ELECTRIC, PARKER, etc.)
FEEDING SYSTEM
Option 1 (vibrating feeder):
• Length: 98"
• Width: 57"
Option 2 (tilting ramp and feeding roller):
• Length: 13.50 ft
• Width: 60"
• Open-air length: 9.35 ft
HAMMERMILL SHREDDER
• FRZB-6363 Hammermill Shredder • Internal width: 63"
• Hammers weight: 135 lb
• Replaceable grates
• Equipped with anvil
• Rotor hammer swing diameter: 63"
• Raisable rotor with upper frame
• Hydraulically operated reject door for unshreddables
• Driven by pulleys and V-beltÇ
HYDRAULIC HAMMER-PIN EXTRACTOR
HAMMERMILL SHREDDER
DISCHARGE CONVEYOR
• Reinforced rubber belt conveyor
• Width: 47"
• Length: 21 ft
• Discharge height: 8.20 ft
REMOTE CONTROL
• Includes tilting ramp operation control
• Includes feeding roller operation control
• Includes hammermill shredder ejection gate opening and closure control
ENGINE
• CATERPILLAR TIER 4 diesel engine (755 bHP)
WEIGHT AND DIMENSIONS
Option 1 (vibrating feeder):
• Length: 40.50 ft
• Width: 10 ft
• Height: 12,65 ft
• Weight: 97,000 lb
Option 2 (tilting ramp and feeding roller):
• Length: 45 ft
• Width: 10.50 ft
• Height: 15.50 ft
• Weight: 112,000 lb
OPTIONALS
• Complete turnkey system with (or without) downstream sortation.
• Fully capped rotor
• Magnetic separation unit (electromagnetic drum)
• Metals separation unit (ECS)
• Manual sorting unit
• De-dust system
