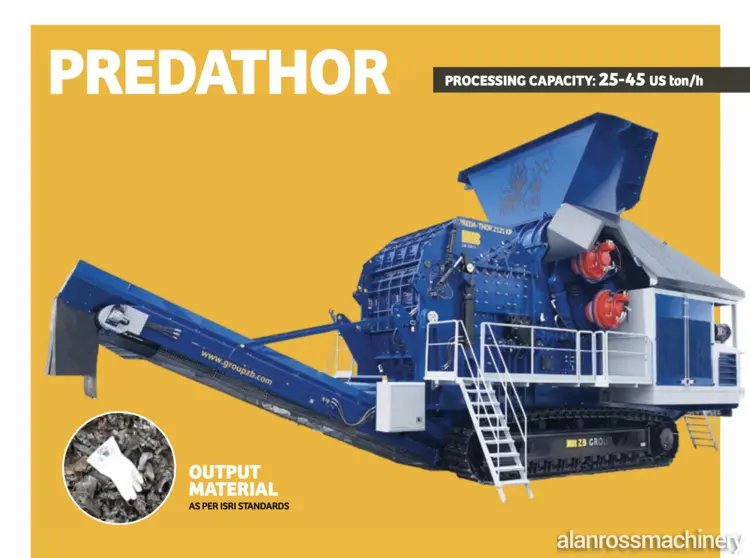

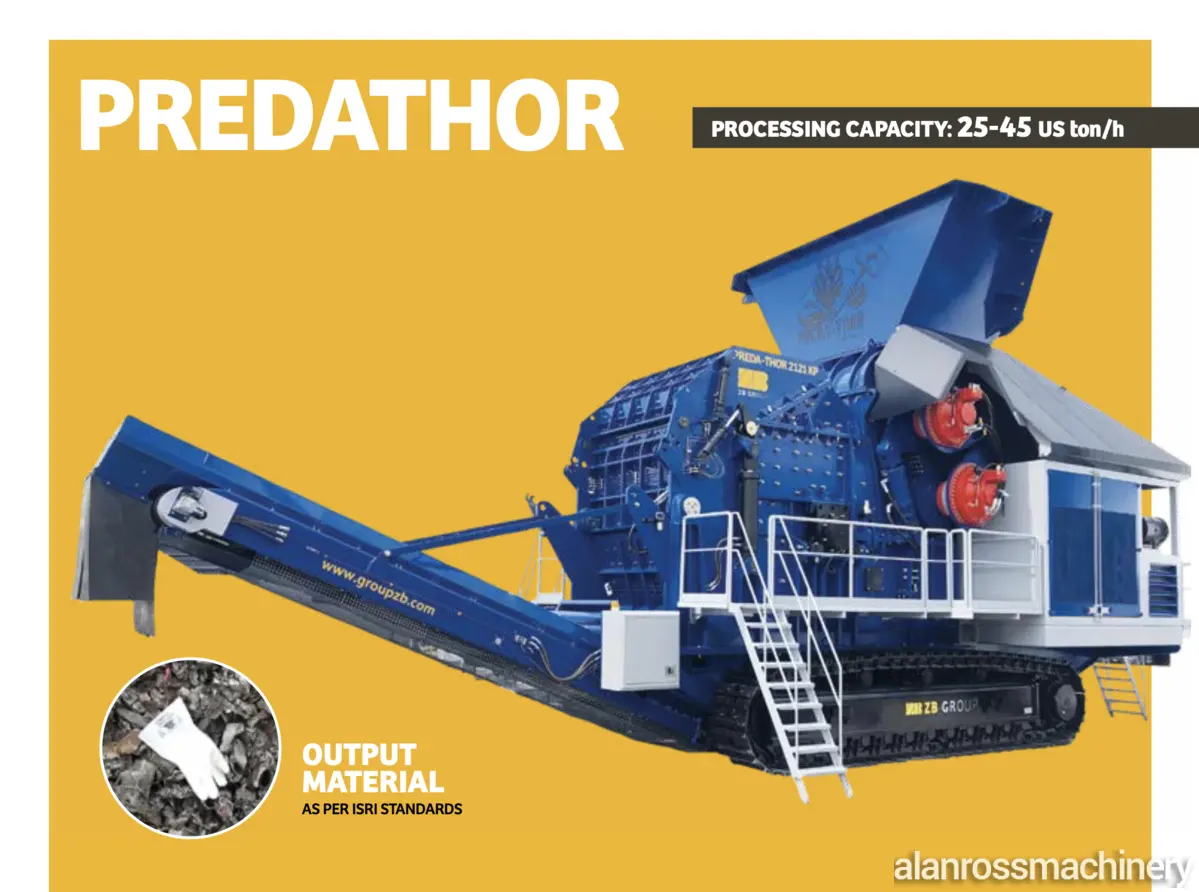

ZB GROUP PREDATHOR 6363 KP | Crushers
Have one to sell?
ConditionNew
New
• FINAL PRODUCT DENSITY UPGRADE
• FINAL PRODUCT VOLUME REDUCTION
• EASY APPROVAL OF OPERATING PERMIT
• HIGH MOBILITY, MOUNTED ON TRACK SYSTEM
• HIGH VERSATILITY OF MATERIALS TO PROCESS
• HIGH RESIDUAL VALUE
• OPTIMIZED FOOTPRINT
• REDUCED CIVIL WORK COST (Only Solid Ground Required)
• REDUCED ASSEMBLY TIME
• LOW ASSEMBLY COST
• HIGH GRATE SURFACE
• HIGH ROI, QUICK PAYBACK
• DESIGNED TO MINIMIZE WEAR COSTS
• DESIGNED TO OPTIMIZE MAINTENANCE OPERATIONS
• PROCESS MONITORING AND OPTIMIZATION SERVICE
• TOP QUALITY COMPONENTS (HARDOX, etc.)
• TOP QUALITY VENDOR LIST (SKF, SCHNEIDER ELECTRIC, PARKER, etc.)
PRE-SHREDDER
• Pre-shredder PSZB-2115-I
• Internal width: 82"
• Driven by one Hägglunds low-speed high-torque hydraulic motor per rotor
• Top rotor maximum torque: 120,000 lbf·ft
• Top rotor toothed discs diameter: 60.00"
• Bottom rotor maximum torque: 120,000 lbf·ft
• Bottom rotor toothed discs diameter: 48.00"
HAMMERMILL SHREDDER
• FRZB-6363-P hammermill shredder
• Internal width: 63"
• Hammers weight: 135 lb
• Replaceable grates
• Equipped with an anvil
• Rotor hammer swing diameter: 63"
• Raiseable rotor with the upper frame
• Hydraulically operated ejection gate for unshreddables
VIBRATING SHAKER UNDERNEATH THE HAMMERMILL SHREDDER
• Length: 9.20 ft
• Width: 43"
HAMMERMILL SHREDDER DISCHARGE CONVEYOR
• Reinforced rubber belt conveyor • Width: 47’’
• Length: 21.50 ft
• Discharge height: 8.20 ft
ENGINE
• CAT C18 755 bHP TIER 4 diesel engine
HYDRAULIC HAMMER-PIN EXTRACTOR
REMOTE CONTROL
WEIGHT AND DIMENSIONS
• Length: 46.00 ft
• Width: 14.00 ft
• Height: 23.00 ft
• Weight: 230,000 lb
OPTIONALS:
• Complete turnkey system with (or without) downstream sortation.
• Fully capped rotor
• Magnetic separation unit (electromagnetic drum)
• Metals separation unit (ECS)
• Manual sorting unit
• De-dust system
