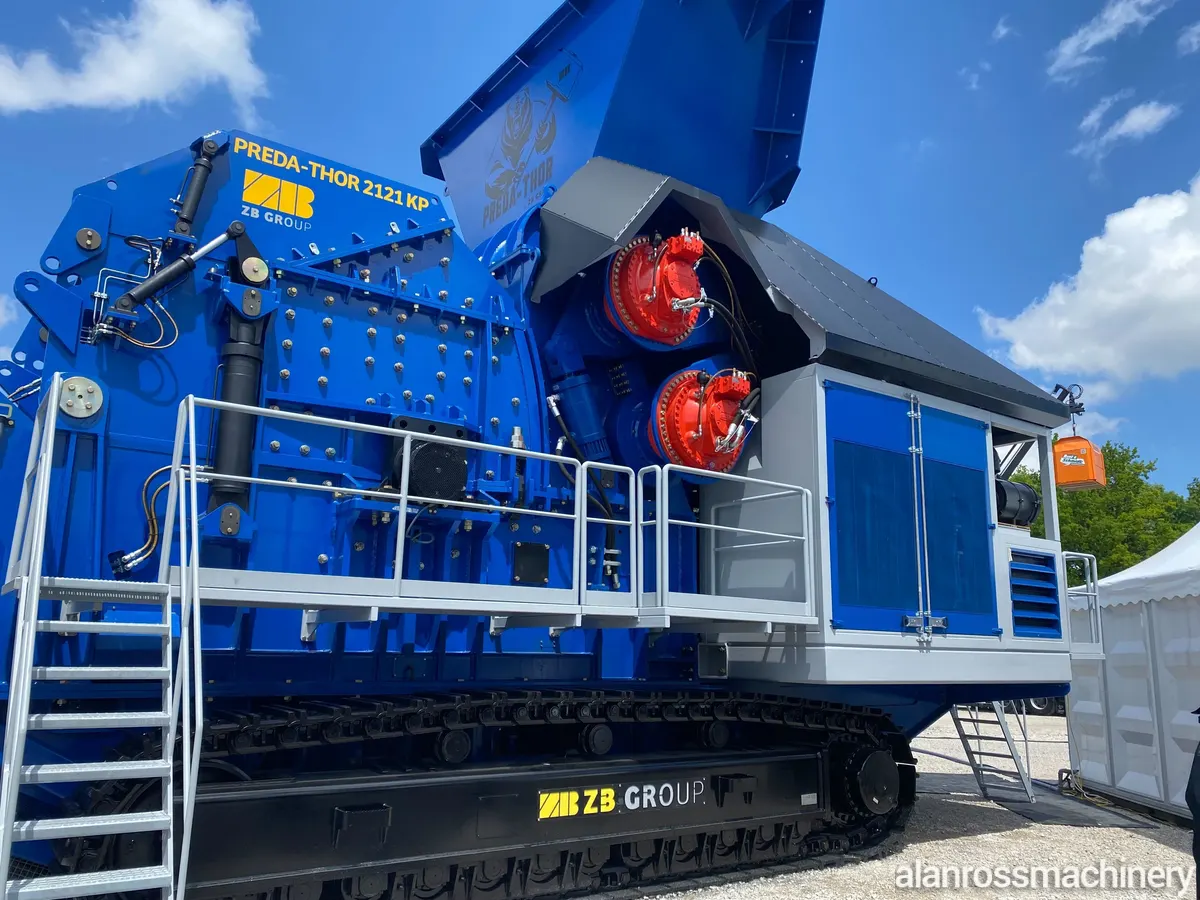

ZB New Predator Pre-shredder Hammermill Integrated System

### Processing Capacity:
- 25-45 US ton/h

### Features:
- **Input Materials:**
- Aluminum Cans
- Light Aluminum Scrap
- Pre-Shredded Aluminum Scrap
- Aluminum Profiles
- Aluminum Sumps
- Slightly Pressed Aluminum Scrap Bales
- Sheared Aluminum Scrap Bales
- Aluminum Scrap Bales
- Aluminum Engine Blocks
- Ferrous Scrap
- White Goods/Appliances
- Car Parts
- Flattened Cars (Width < 80’’)
- Entire Cars (Width < 80’’)
- Small to Big Size White Goods
- CDW (Construction and Demolition Waste)
- Concrete and Reinforced Concrete
- Concrete Railway Sleepers

### Key Benefits:
- **Final Product:**
- Meets ISRI standards
- Density Upgrade
- Volume Reduction
- High Residual Value

- **Operational Efficiency:**
- Optimized Footprint
- Reduced Civil Work Cost (Only Solid Ground Required)
- Reduced Assembly Time and Cost
- High Grate Surface
- High Versatility of Materials to Process
- High Mobility (Mounted on Track System)

- **Maintenance and Cost:**
- Designed to Minimize Wear Costs
- Optimized Maintenance Operations
- Process Monitoring and Optimization Service
- Top Quality Components (HARDOX, SKF, Schneider Electric, Parker)
- High ROI, Quick Payback

### Technical Data:
- **Pre-Shredder PSZB-2115-II:**
- Internal Width: 82’’
- Driven by Two Hägglunds Slow-Speed High-Torque Hydraulic Motors per Rotor
- Top Rotor Maximum Torque: 240,000 lbf·ft
- Top Rotor Toothed Discs Diameter: 60.00’’
- Bottom Rotor Maximum Torque: 240,000 lbf·ft
- Bottom Rotor Toothed Discs Diameter: 60.00’’

- **Hammermill Shredder FRZB-8080-P:**
- Internal Width: 82’’
- Hammers Weight: 230 lb
- Replaceable Grates
- Equipped with an Anvil
- Rotor Hammer Swing Diameter: 80’’
- Raiseable Rotor with the Upper Frame
- Hydraulically Operated Ejection Gate for Unshreddables

- **Vibrating Shaker Underneath the Hammermill Shredder:**
- Length: 9.80 ft
- Width: 55’’

- **Hammermill Shredder Discharge Conveyor:**
- Reinforced Rubber Belt Conveyor
- Width: 63’’
- Length: 21.50 ft
- Discharge Height: 8.20 ft

- **Engine:**
- CAT C32 1200 bHP TIER 4 Diesel Engine

- **Weight and Dimensions:**
- Length: 50.00 ft
- Width: 17.50 ft
- Height: 26.00 ft
- Weight: 385,000 lb
