RPMX 1516 Used BHS Centrifugal Crusher
Sold

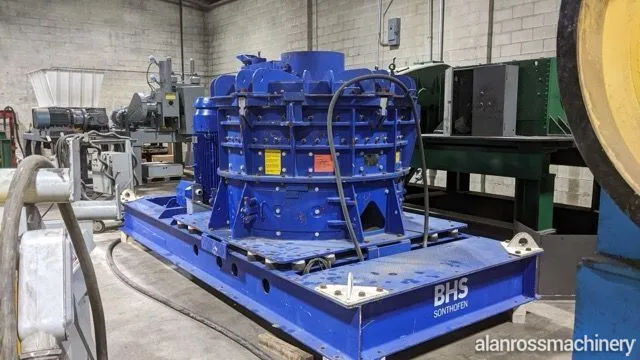

RPMX 1516 Used BHS Centrifugal Crusher

Crushers
Manufacturer:
BHS
Model:
RPMX 1516
Stock #:
37561
Turbomill type size reduction for liberation, separation and material preparation prior to additional sortation methods. A higher circumferential speed and the considerably smaller grinding gap characterize the RPMX. This feature set makes it ideal for ball shaping and separating composite parts with particle sizes from 0 to 15 mm.
Weight14700 Kg (37000 lbs)14700 Kg (37000 lbs)

1500 x 160 mm Rotor Diameter & Height
12 Hammers
90 M/S Rotor RPM
315 kW 400V Electric Motor (Approx 400hp)
Unique Crushing Principle:
Impeller rotor is one of its kind worldwide
High energy load to the feed material thanks to centrifugal forces
Impact and shearing forces produce intensive shredding & shaping (balling) results
Rotation results in a nearly constant gap
Common Applications:
Selective crushing
• Brittle materials such as glass and minerals are finely shredded and/or pulverized via impact and shearing forces
Shaping of metals into balls
• Possible to pelletize even ductile materials due to high levels of stress being applied between the horseshoe-shaped hammers and the fixed anvil ring
Separation of composite materials
• Multi-stage application of stress cleans metals and separates out various materials
• Example of cable recycling: Efficient removal of the plastic sheathing from the conductor
OEM Video Link: https://www.bhs-sonthofen.com/recycling-technology/machines/impact-crushing/rotor-impact-mill_rpmv-and-rpmx

All specifications derived from manufacturer's literature and/or representations from third-parties & may be subject to change or contain inaccuracies. Please see ARM Terms & Conditions Of Sale for more information: https://whatboard.app/b/armtandc
