Redwave 1370 XRF/C-SDD Sorter

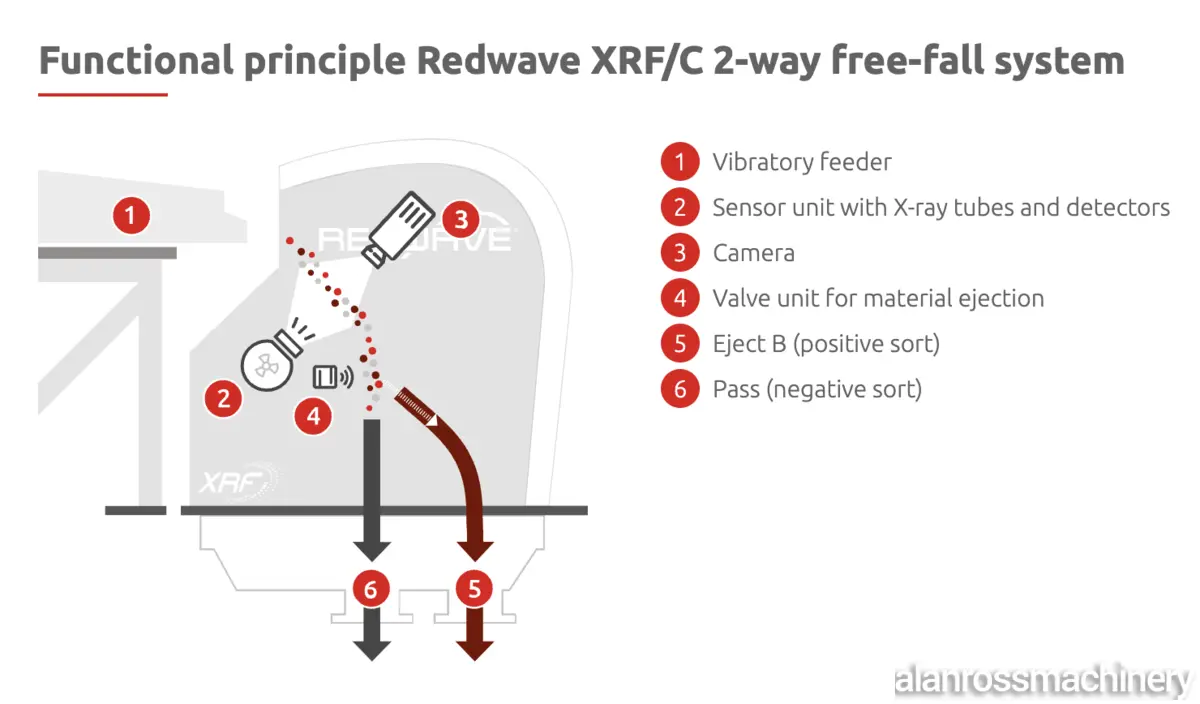

2-way optical sorter, sorting width 1370mm with Olympus Innov X-ray
fluorescence spectral analysis unit with 6 parallel arranged X-ray tubes
and 36 high-sensitive detectors as well as high resolution camera and
image processing technology, in single camera system with 144
ejection valves and nozzles
REDWAVE application: Metal Sorting
Sorting width: 1,370mm
Type of machine: Advanced
Machine design: 2-Way
No of ejection valves: 144
Valve distance: 9.50mm
XRF Sensor, Camera, Reject unit, wear protected cutting edge
completely mounted in a frame.
Including Vibratory Feeder, Control Cabinet with touchscreen, HMI,
and remote internet access for after-sales support, Ventilation System
for purification of sensor components
Typical Size Constraints: ca. 10-180 mm / ca. 0,4-7”. REDWAVE recommends screening the material at ca. 45 mm / ca. 1,5”
XRF/C-SDD 1370 Performance (per MFG):
Step Sorting Task Input Capacity (t/h) Purity of Eject
1 Eject Heavy Metals Small Zorba (0.5"-1.5") 7.5 >92%
2 Eject Zinc Eject Step 1 4 >92%
3 Eject Copper Eject Step 2 3.5 >92%
4 Eject Stainless Steel Eject Step 3 4 >92%
5 Eject Brass/Bronze Eject Step 4 4 >92%
1 Eject Heavy Metals Large Zorba (1.5"-7") 12 >95%
2 Eject Zinc Eject Step 1 6 >95%
3 Eject Copper Eject Step 2 5 >95%
4 Eject Stainless Steel Eject Step 3 6 >95%
5 Eject Brass/Bronze Eject Step 4 6 >95%
