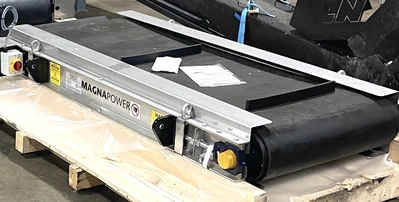

48" OCP3412E New Magnapower Crossbelt Magnetic Separator

GENERAL DESCRIPTION:
Deep-field, high-intensity permanent magnetic separator designed for continuous ferrous extraction from heavy material burdens. Utilizes a compact, non-deteriorating magnetic circuit with alternating poles to concentrate flux density within the working zone and reduce stray magnetic interference. Performance characteristics at the working gap are engineered to be comparable to rare earth magnet systems.

MAGNETIC PERFORMANCE:
* Magnetic Flux Density (Primary): ~13,000 gauss per 2/cm at 250mm (approx. 5/8 inch)
* Magnetic Flux Density (Secondary): ~7,000 gauss per 2/cm at 350mm (approx. 8 inches)
* Magnet Type: High-powered permanent magnet (no power required for magnetic field)
* Field Characteristics: Deep-field penetration with minimized stray flux

DRIVE & ELECTRICAL:
* Motor Power: 1.5 kW (Approximately 2 HP)
* Electrical Configuration: 440-460 V / 60 Hz
* Belt Speed: 4.26 feet per second (approx. 1.3 m/s)
* Drive Type: Heavy-duty electric motor and gearbox assembly

DIMENSIONS & CONSTRUCTION:
* Belt Width: 48 inches (approx. 1220 mm)
* Maximum Working Gap: 12 inches (approx. 300 mm)
* Frame Construction: Welded Stainless Steel
* Rigging: 4 Integrated Lifting Eyes for suspended installation

FEATURES:
* Stainless steel framework for durability and corrosion resistance
* Permanent magnetic core ensures constant magnetic strength without deterioration
* Self-cleaning design via continuous discharge belt
* Designed for cross-belt or in-line over-conveyor mounting

NOTES:
* Performance ratings are based on specified working gaps; actual extraction efficiency may vary based on material density and burden depth.
* This unit is an "E" series variant (OCP3412E), optimized for high-intensity deep-field applications.
