28" x 20' Surplus Heavy Duty Conveyor w/Cleats
Have one to sell?
1 available
28" Wide x 20' Long
Cleated Belt--2"
Per Factory Information:

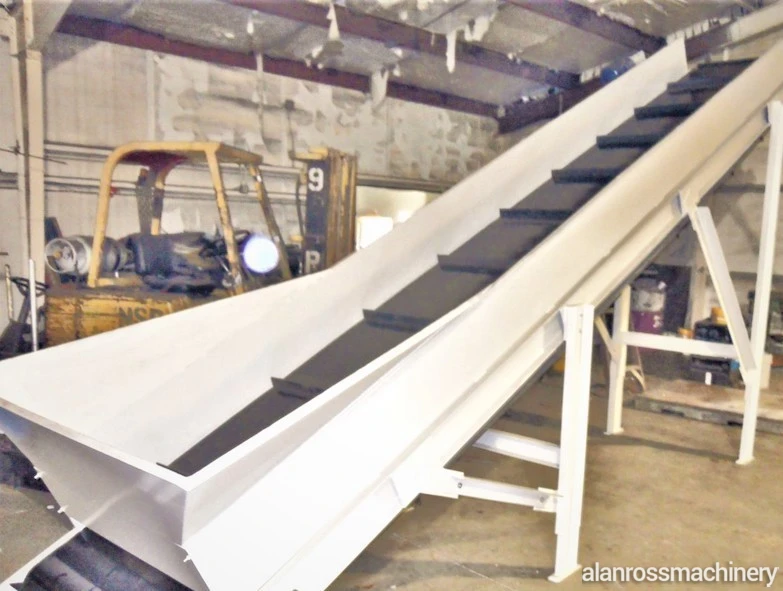

New 28" wide x 20' long discharge Conveyor, 14" sides, cleated belt with 2" high cleats on 24" centers,
6" diameter feed roller with bearings in a heavy duty slide frame allowing adjustment for belt alignment, 8" diameter
drive roll driven by a 2 HP motor/gearbox with a chain /sprocket system.
The conveyor bed is app 20" off the floor.There is a hopper at the back end of the conveyor that is 48" wide
All legs have a height adjustment of 5"". 460V/3PH/60Hz.
