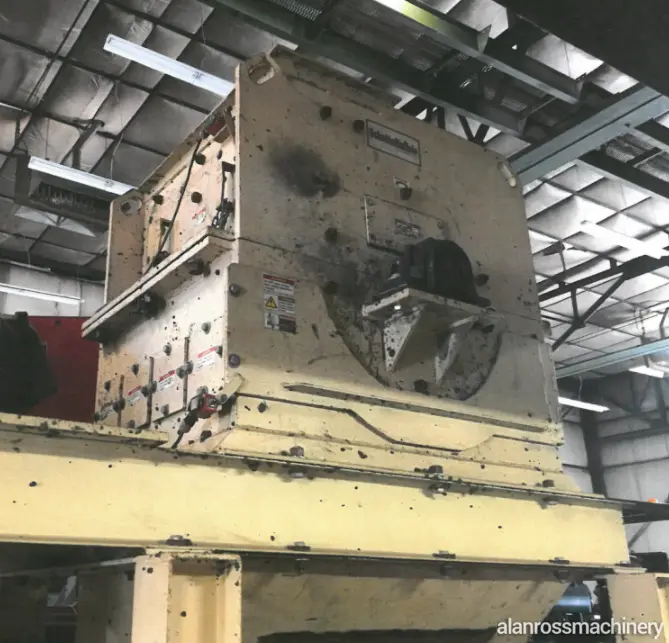

36" Used Schutte-Buffalo Permamill Hammermill

Schutte-Buffalo Hammermill E-Cycler
Model WA-36-H

Motor: 100 HP, TEFC motor, V-belt drive and guard.

Mill Construction:

Mill is 36” in width (internally) with a 30” rotor diameter.

Manufactured from 1” A-36 plate, all weld construction

Mounted on a structural steel sub-base

1” thick internal wear plates made from abrasion resistant steel

HD screen covering the discharge area to properly size material.

Rotor assembly:

(72) Four-way reversible hammers (1”) abrasion-resistant hammers

(8) 1” heat-treated hammer rods

(1) Precision machined shaft warranted for five (5) full years

(19) Heavy-duty rotor discs & spacers

(2) Packing glands to prevent material leakage along shaft

(2) Complete pillow block bearings – 3 7/16”
