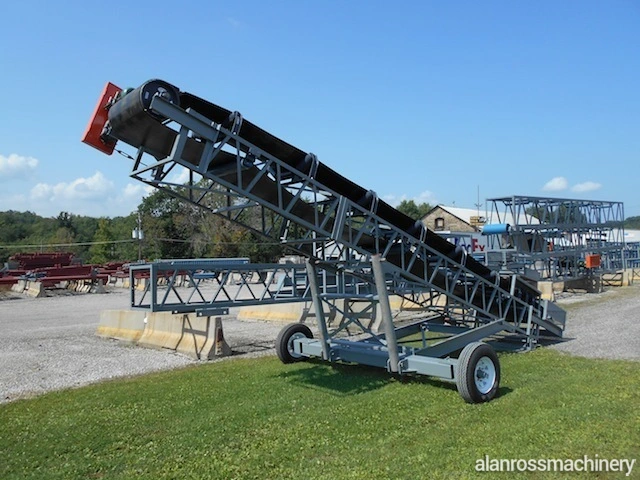

36" x 30' New Pit Portable Radial Stacker Conveyor

Per Factory Specifications:
24” Deep Truss, 2x2x1/4 Cord Angle, 11/2x11/2x3/16 Lattice
Heavy Duty Undercarriage, 8x8 Tubing Axle, 16” Tires & Rims
Lagged head 16” Dia., 1 15/16” Shaft & Ball Bearing
Winged Tail, 1 15/16” Shaft & Ball Bearings w/Screw Take-ups
World Wide #2 Drive, Motor Mount, Belt Guard
3.0 hp, TEFC, 1800 RPM, 230/460 volt
Pioneer, 5” x 35 deg., Cema C Top Rollers on 48” Centers
Pioneer, 5” Returns w/Brackets, 10’ Centers
Belt, Rubber, 2 Ply, 220 PIW, 3/16 x 1/16 Cover
48” Load Zone w/Skirt Rubber
Pivot Plate, Tow Hook
Tail Guard
Primed & Painted, Tool Steel Gray, Unless Specified Differently
